CMB Flow.AI

2025 Technically Reinvent

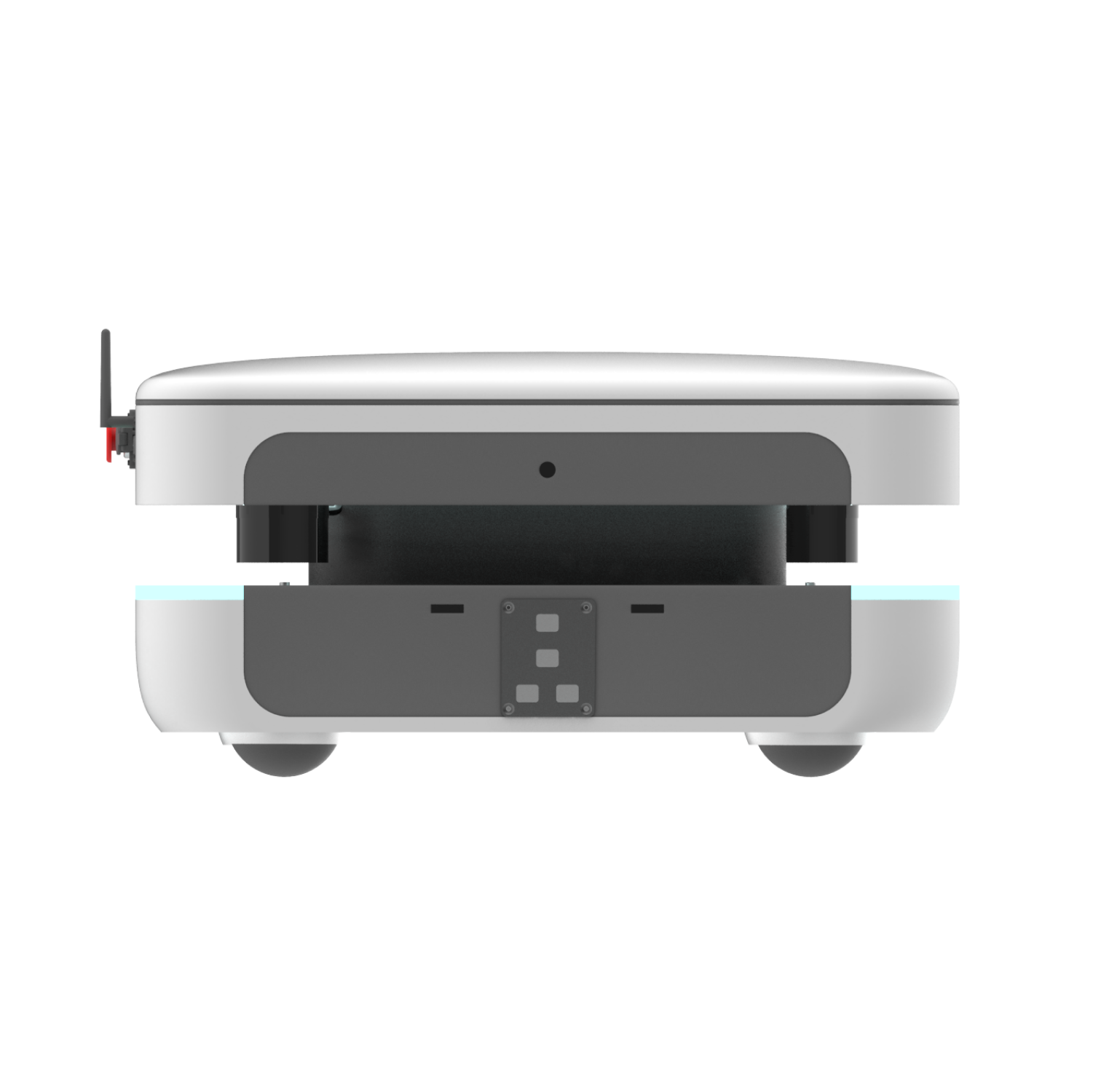

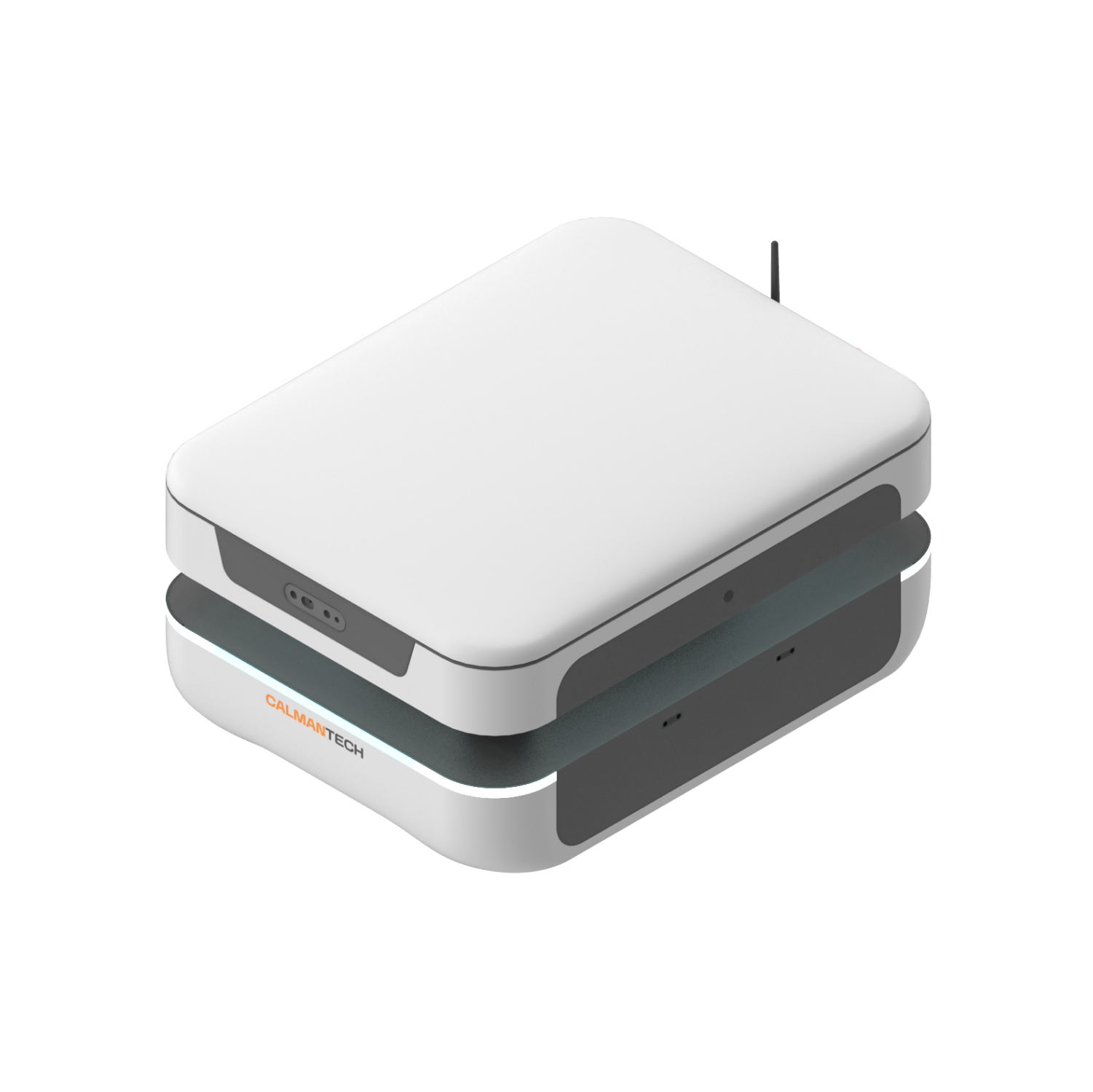

Omnidirectional AMR Optimized for Manufacturing Logistics Automation. Advanced Vision-Based Navigation with Low-Cost, Accurate 3D Mapping

Omnidirectional AMR with patented ball-wheel technology

Fuses 2D LiDAR + RGB camera for accurate 3D mapping

Precise localization without expensive 3D sensors

Smooth in-place turns and side shifts in tight spaces

Stable driving with slip correction and self-positioning

Inspired by the Hover Stream concept, CMB Flow.AI merges fluid, futuristic design with modular functionality

Key Features

Hover Stream-Inspired Design

Directional Flow Light / Float Drift / Fluid Symmetry

CMB Flow.AI features a fluid, curved design inspired by the “Hover Stream” concept, visualizing motion in real time through directional lighting.

Modular & User-Friendly

Its modular top platform allows easy attachment of accessories, while intuitive button placement and soft-touch finishes enhance user experience.

Safe, Scalable, Efficient

Rounded edges, built-in sensors, and standardized components ensure safety, lower production costs, and support scalable deployment across diverse environments.

Detailed Specifications

Basic Specification

Dimensions (L x W x H)

700 x 540 x 330

Weight (with Battery)

40kg

Max Payload

Around 90kg

Drive wheels

Ball type(Omnidirectional)

Mobility

Max Speed

1.2m/s

Docking Precision

±2 mm, ±0.5° (with Vision)

Environment

Temperature

5 ~ 40°C(41 to 104°F)

Slope

5~7°

Min driveway width

0.7m

Mobility

최대 속도

1.2m/s

최대 경사

40Kg 적재 시 약 5~7°

정지 정밀도

±5 mm, ±0.5° (with Vision)

Battery

Voltage

DC 24V

Capacity

80Ah

Recharging Time

Approx. 3.5 hours (10%~90%)

Runtime

With load Approx. 8 hours

Sensors

2D LiDAR

2EA (360° field of view)

RGB-D

1EA

Bumper Sensor (optional)

Front, Rear, Side Corners

Autoplay Background Video Playing on Loop

Key Features

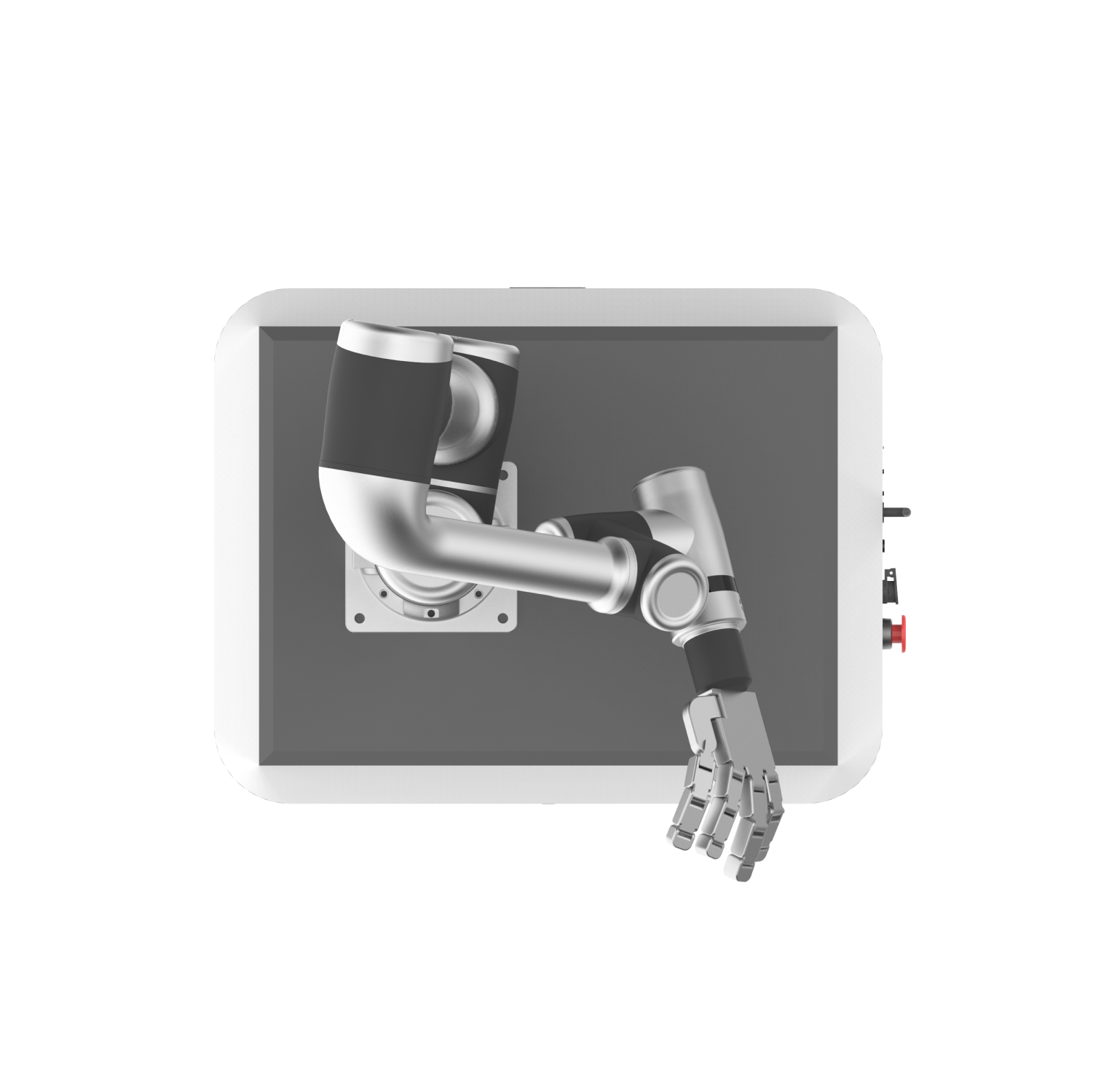

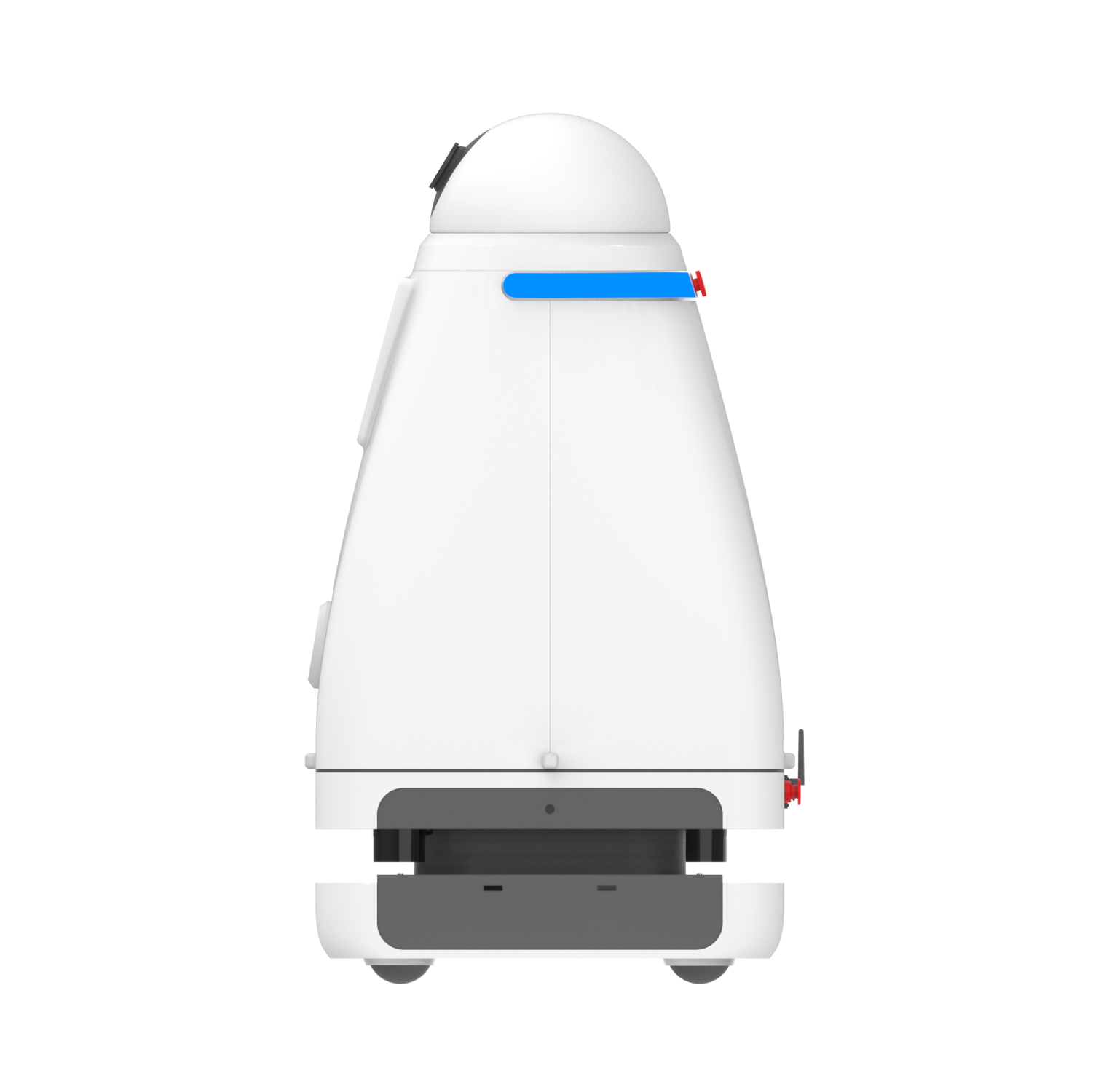

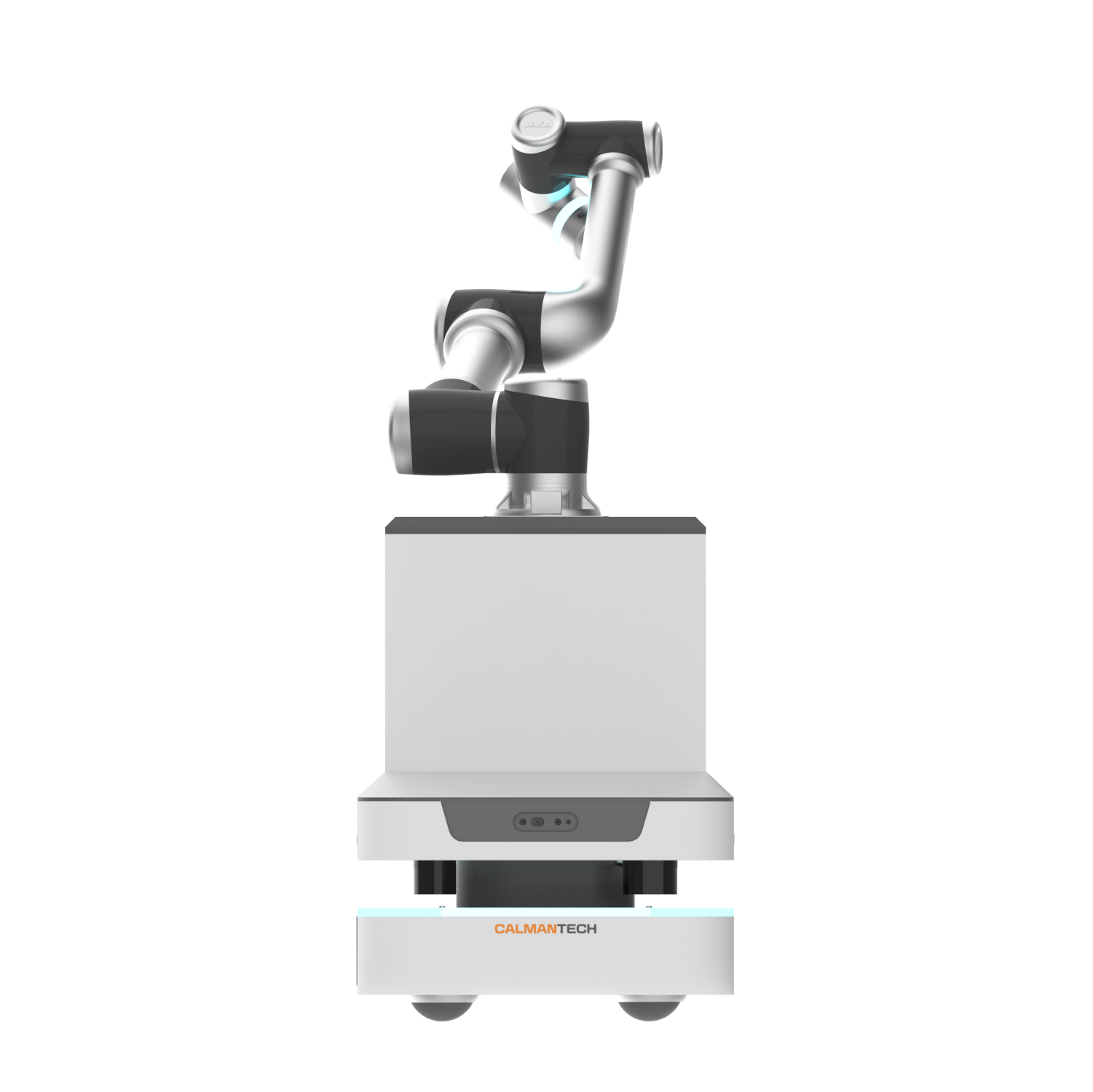

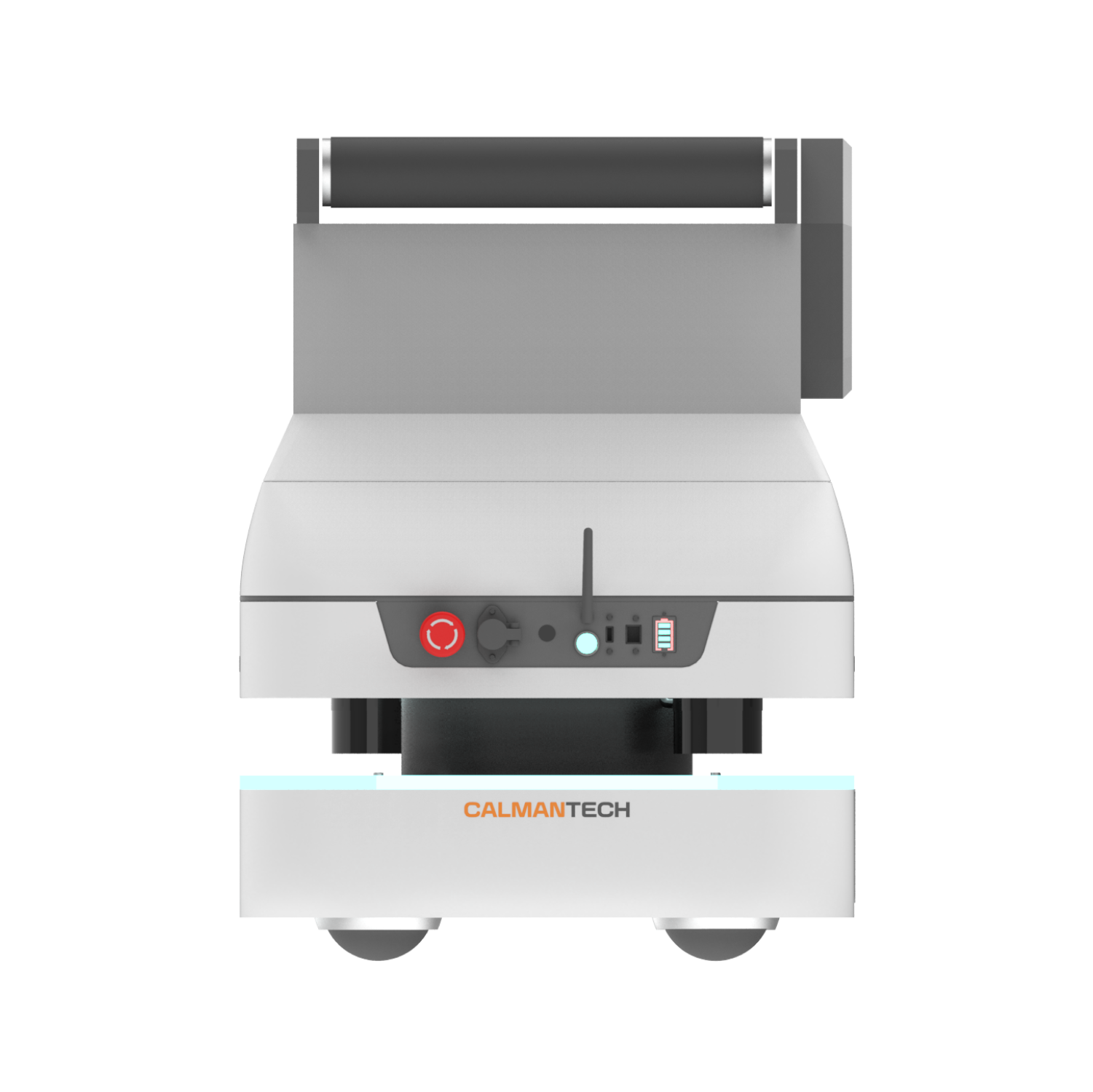

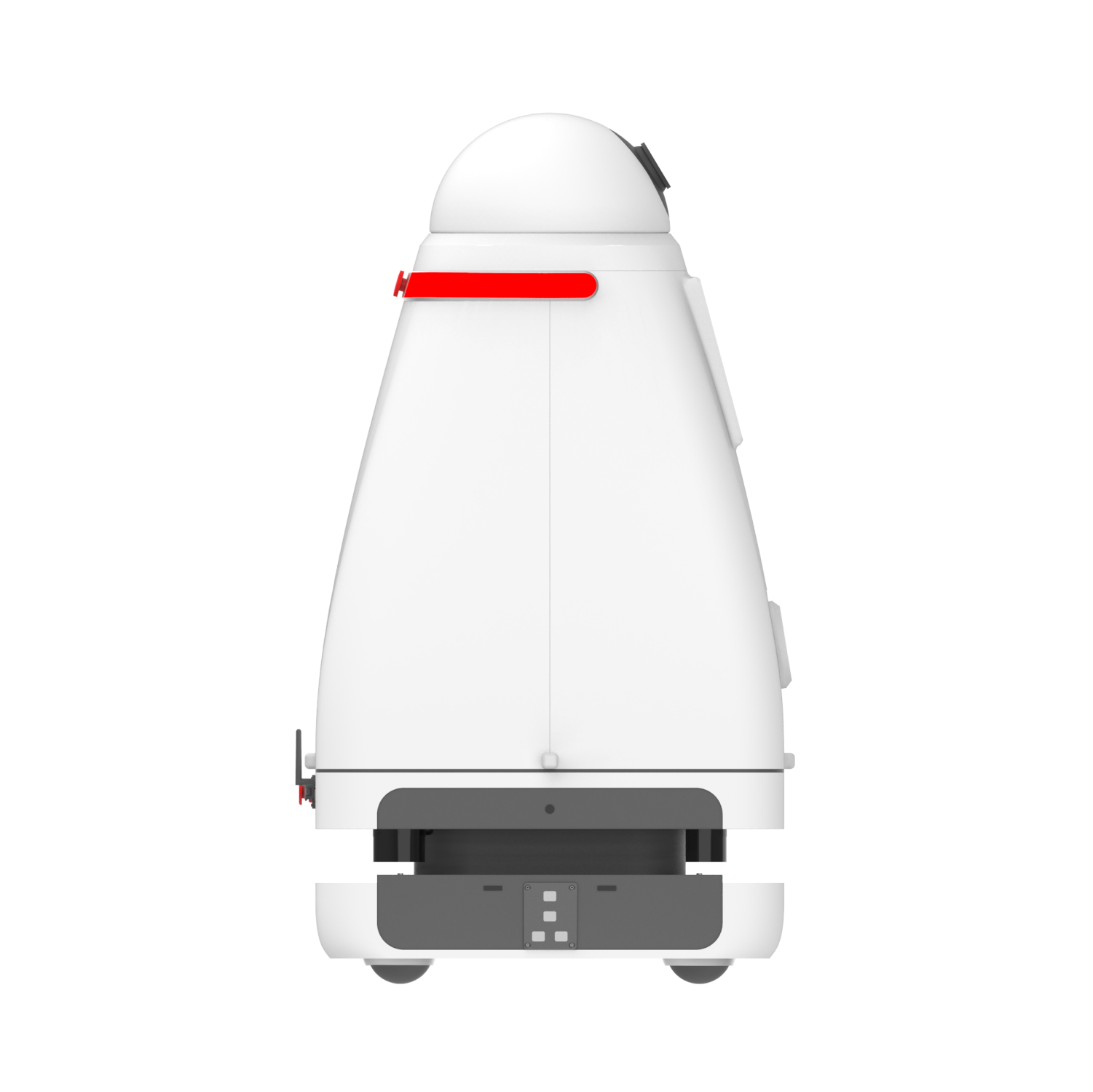

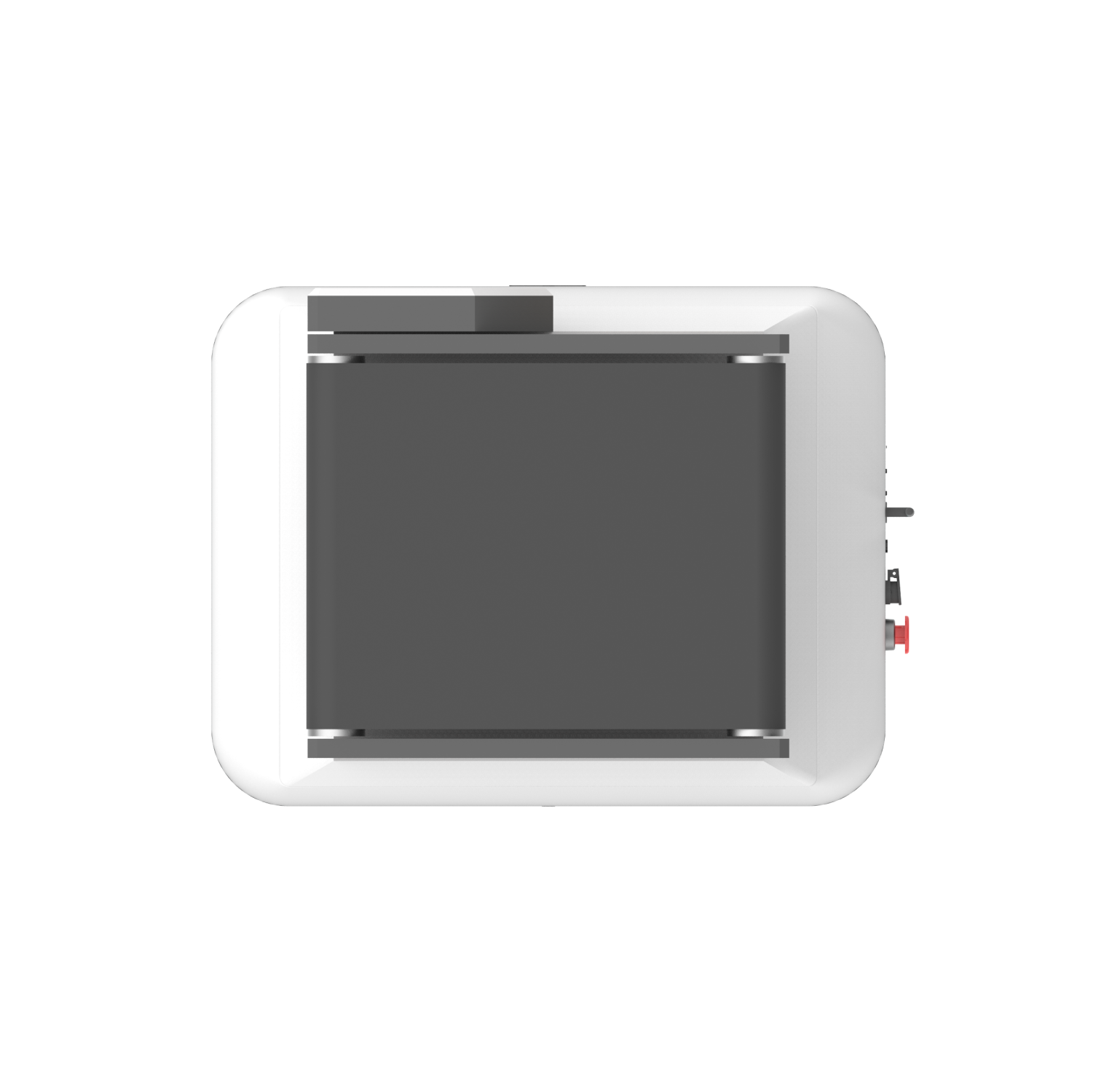

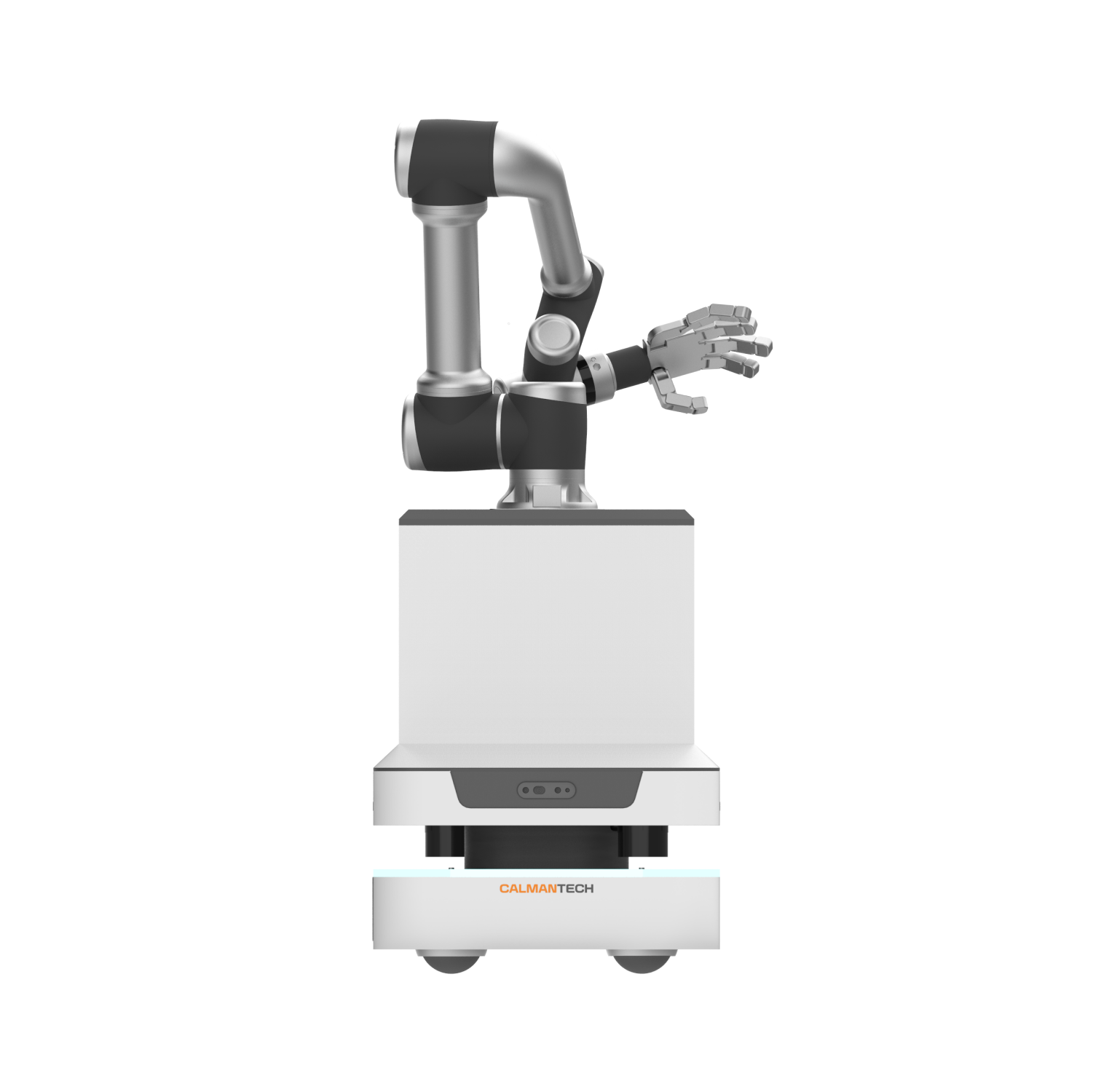

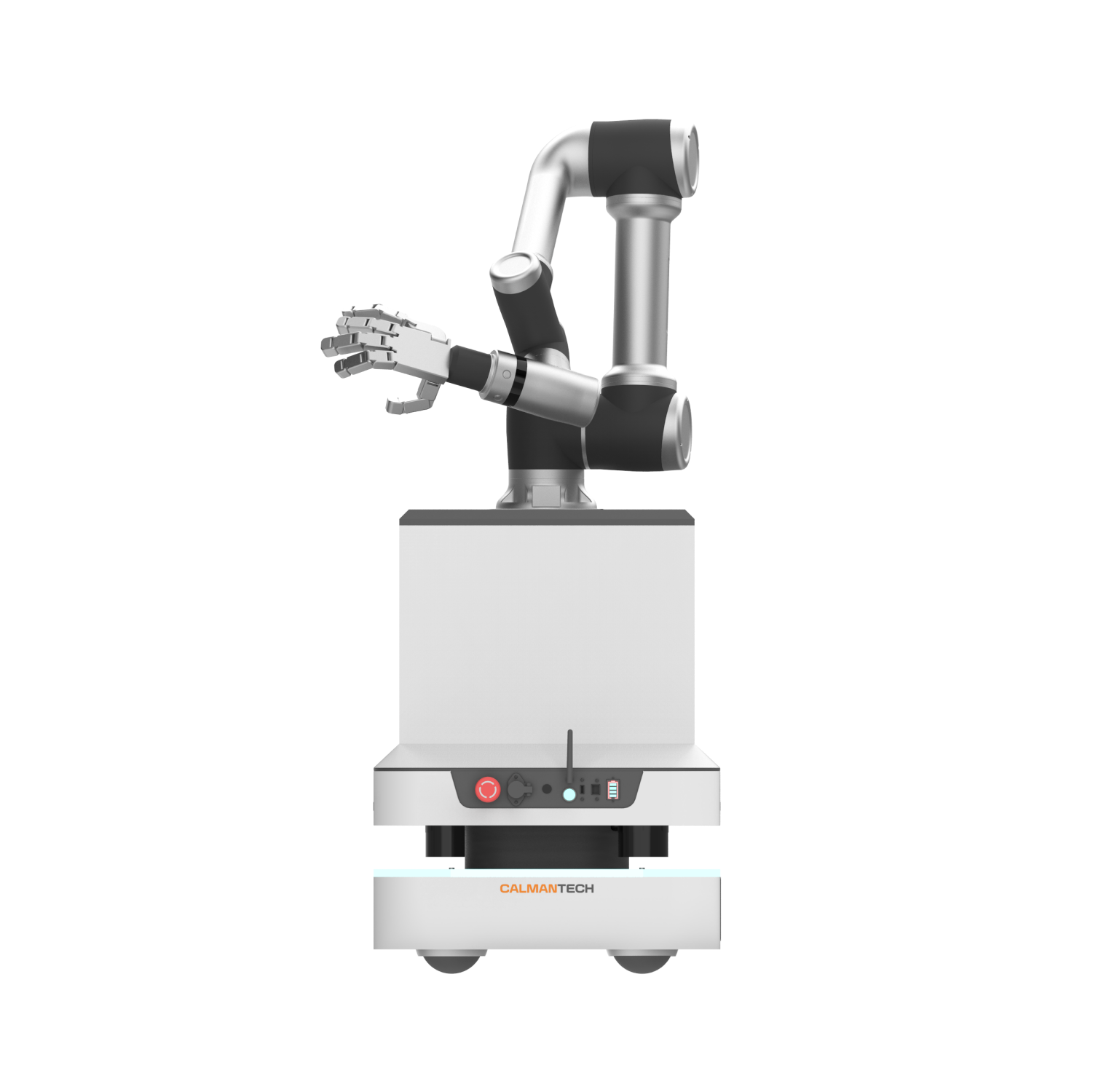

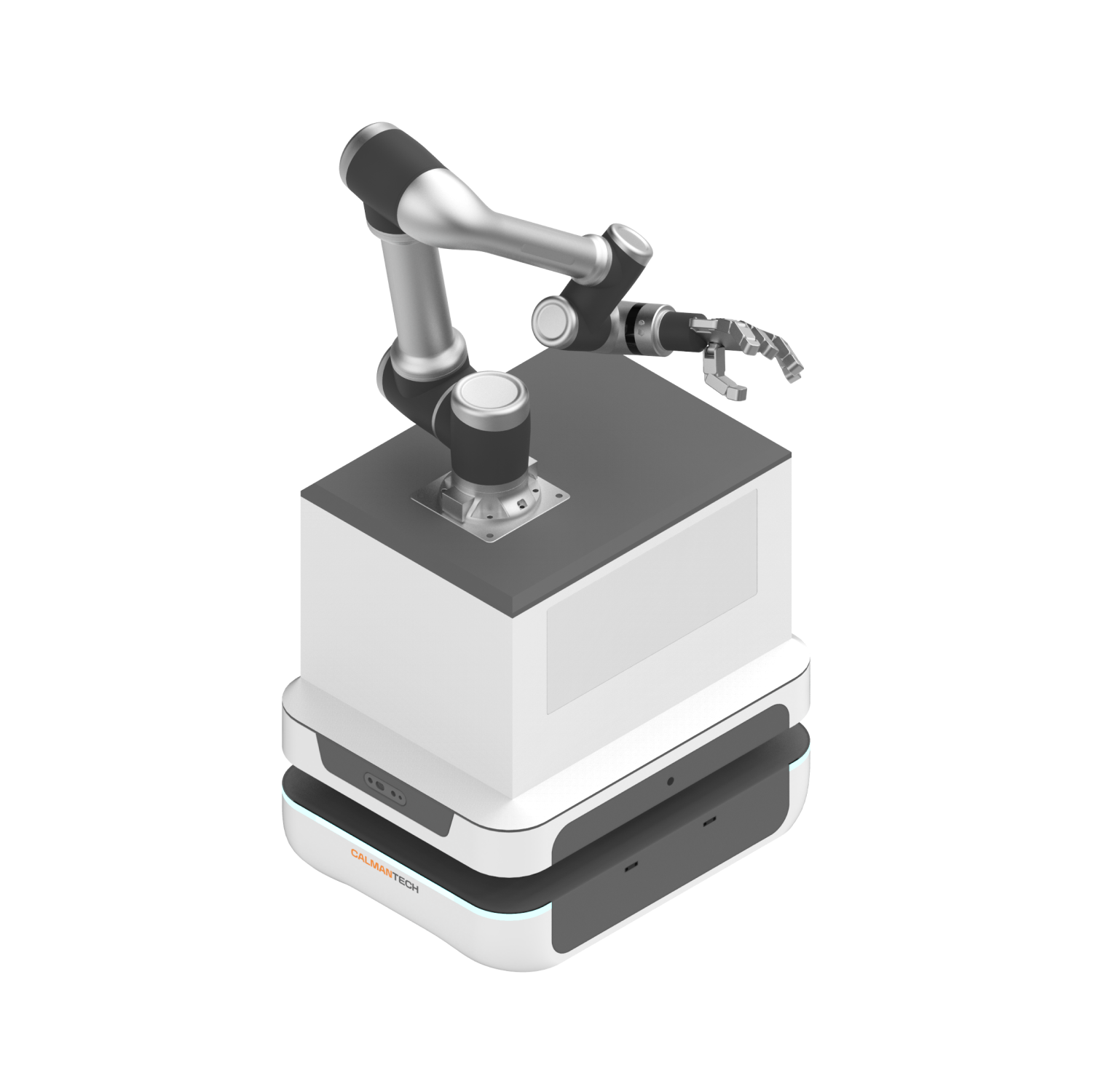

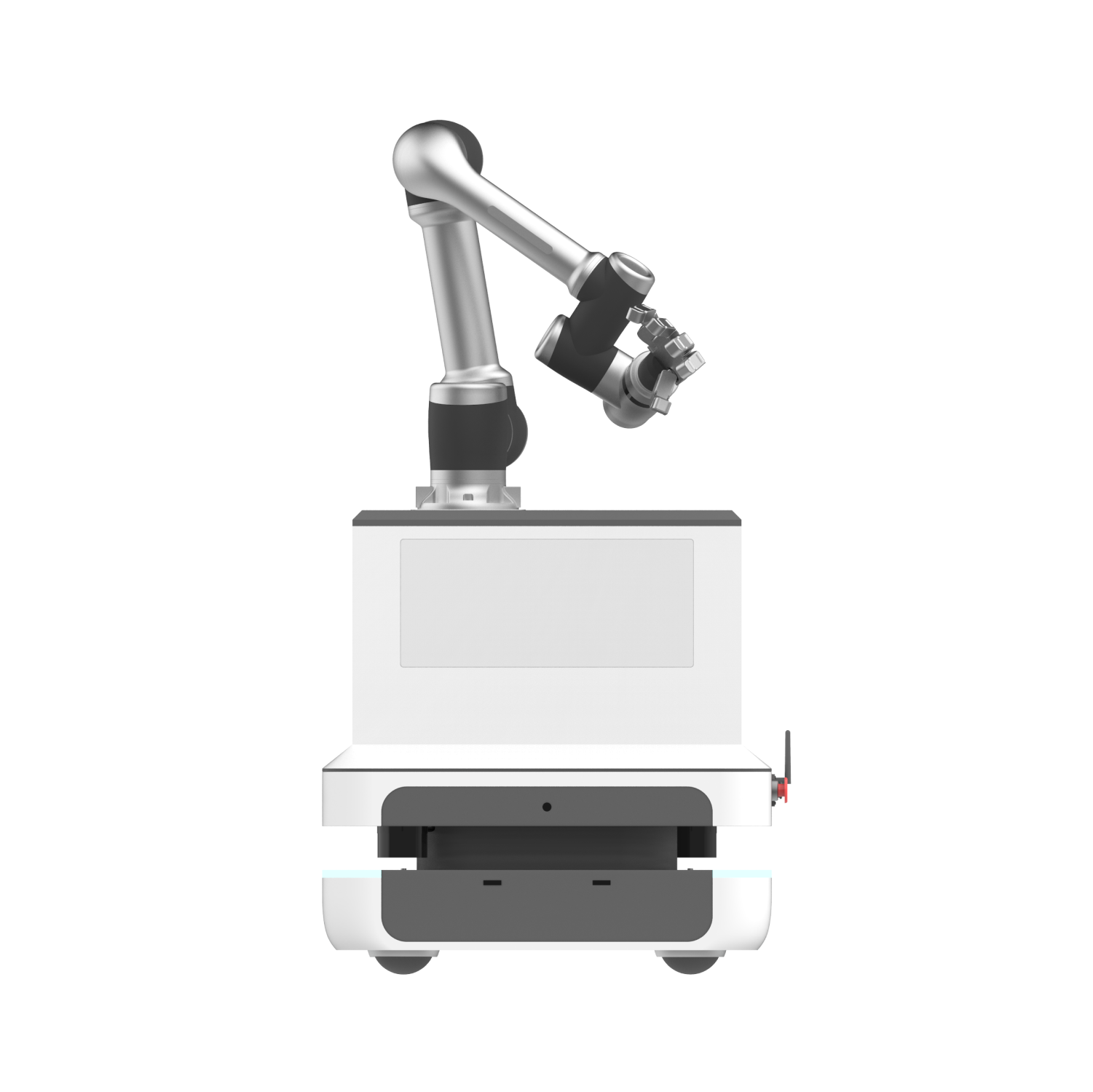

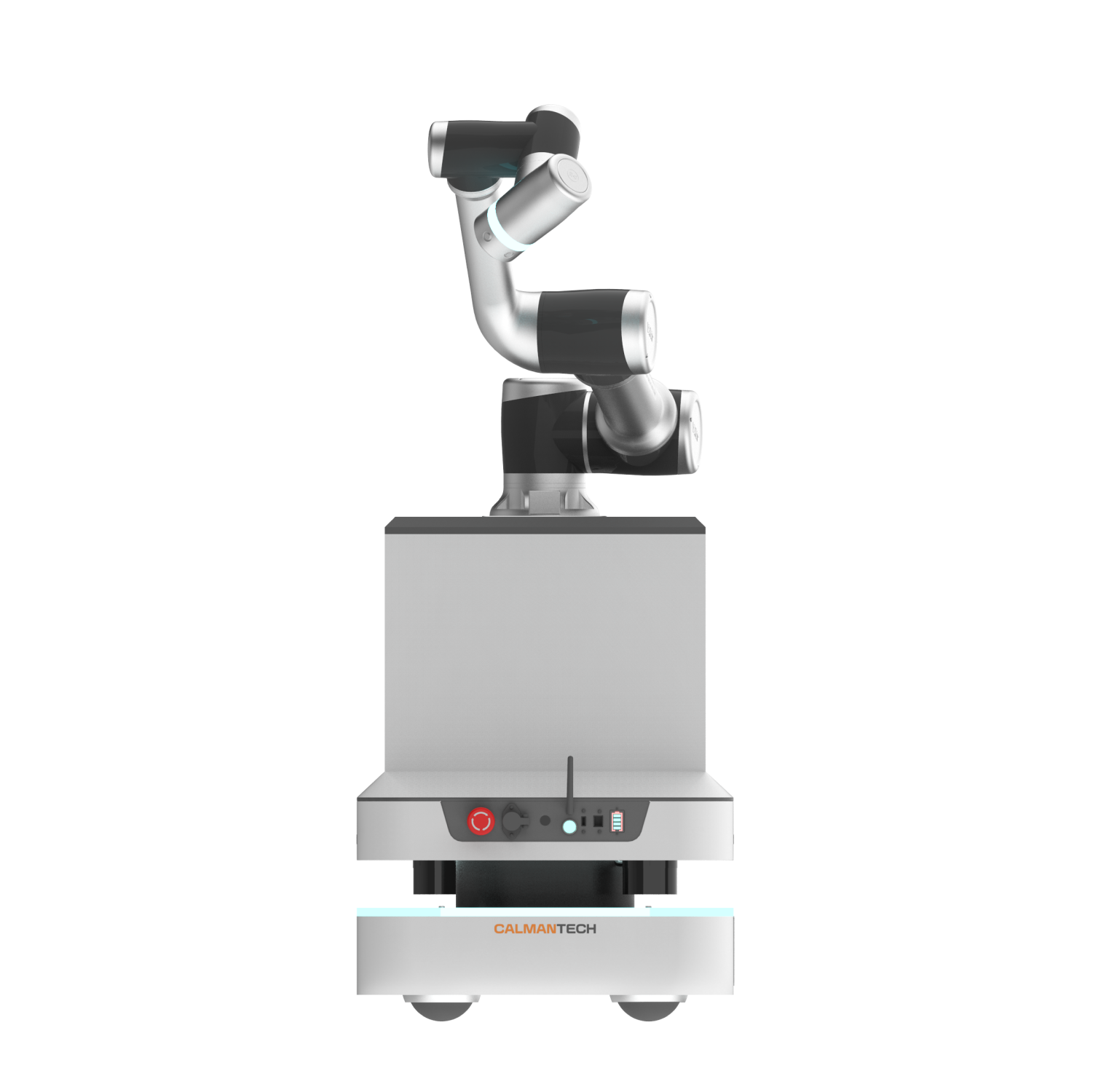

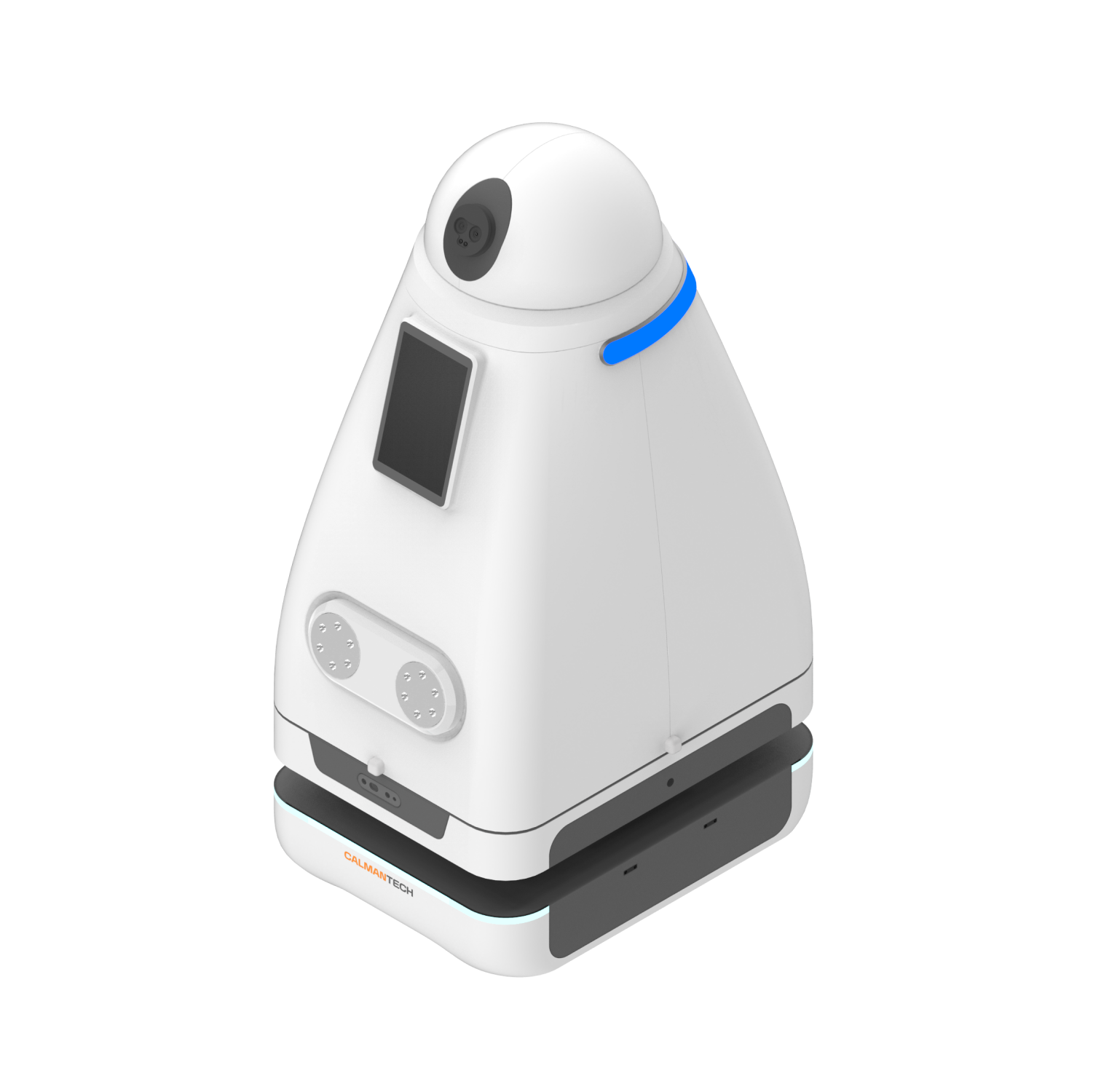

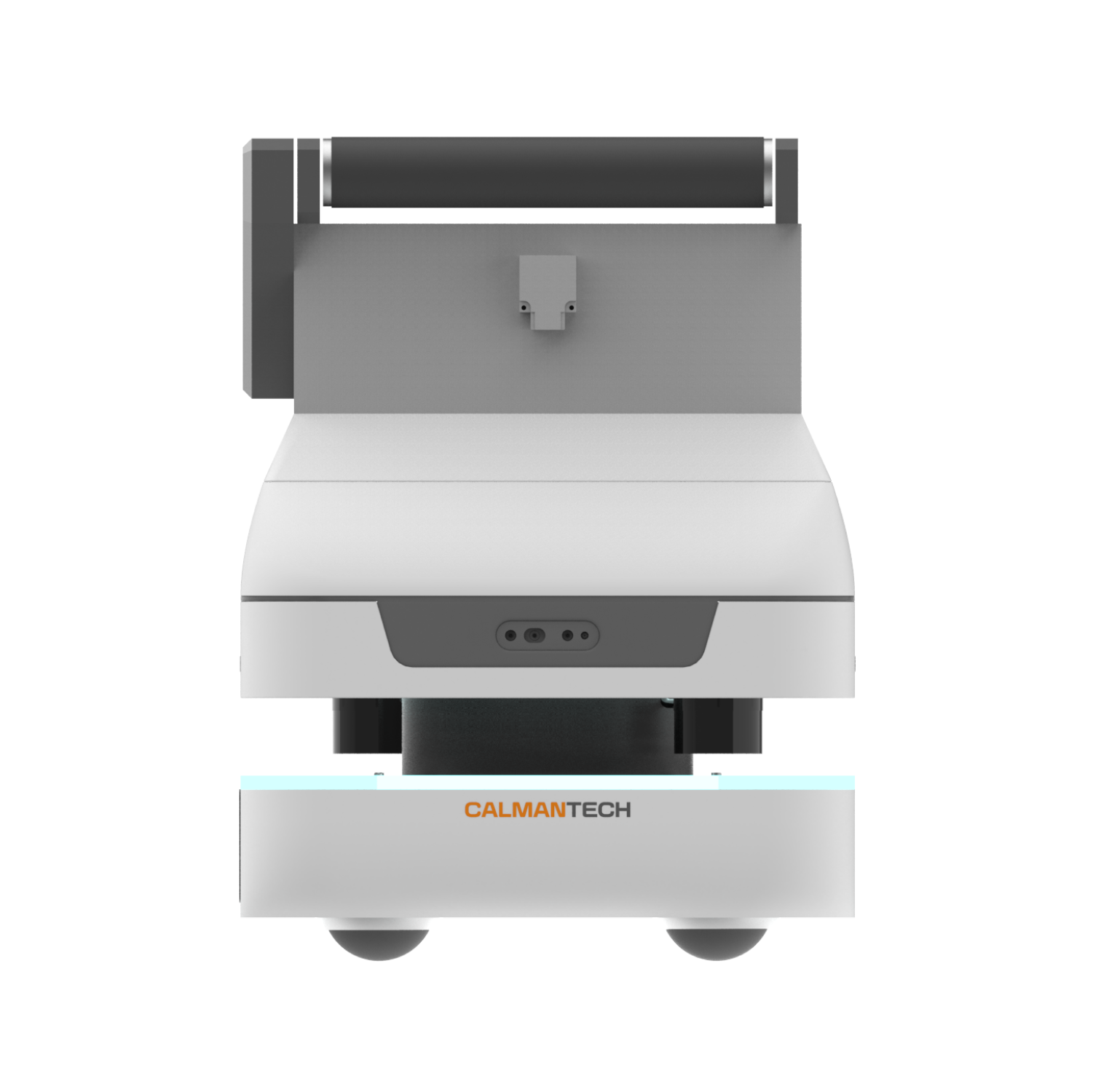

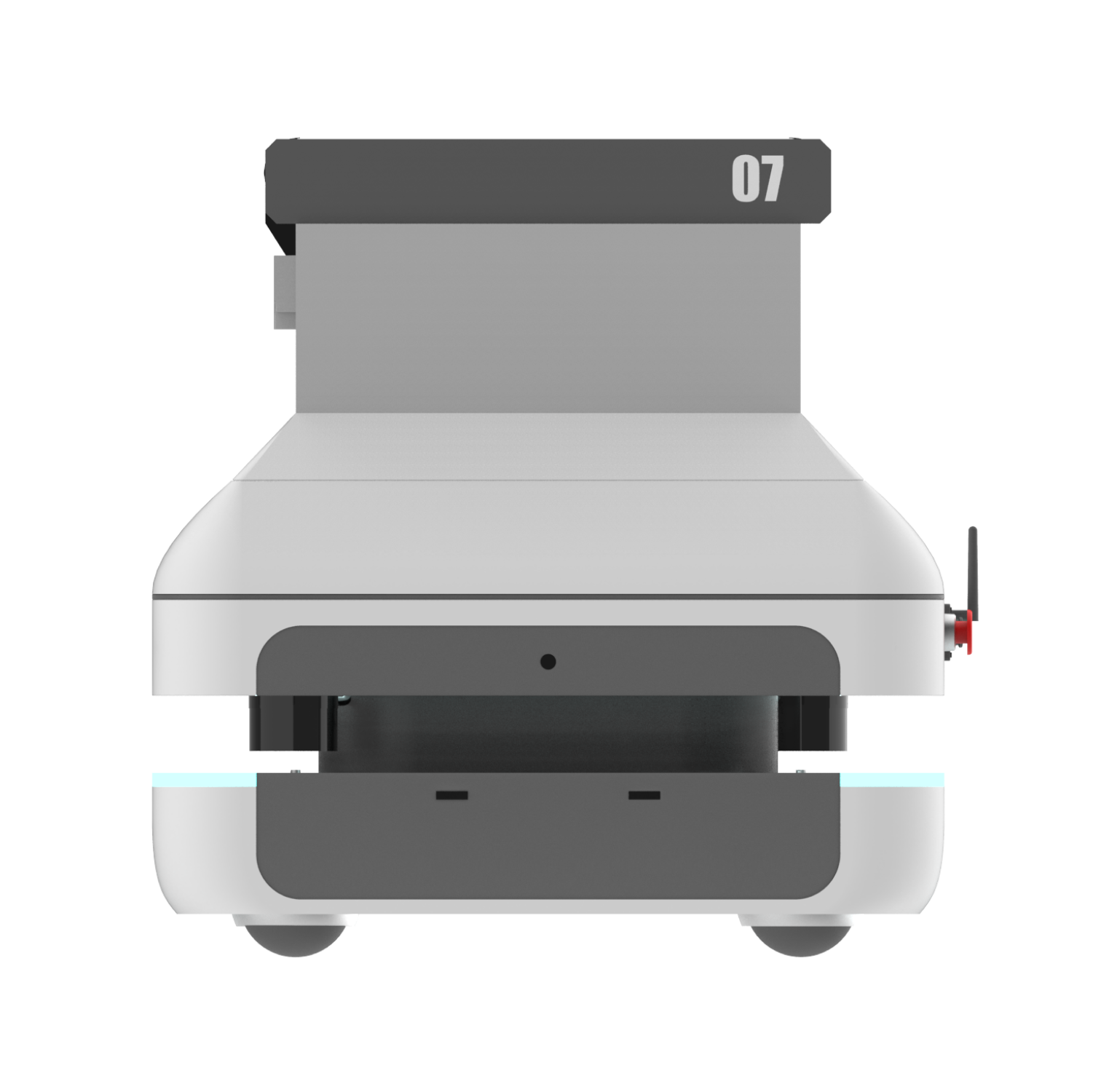

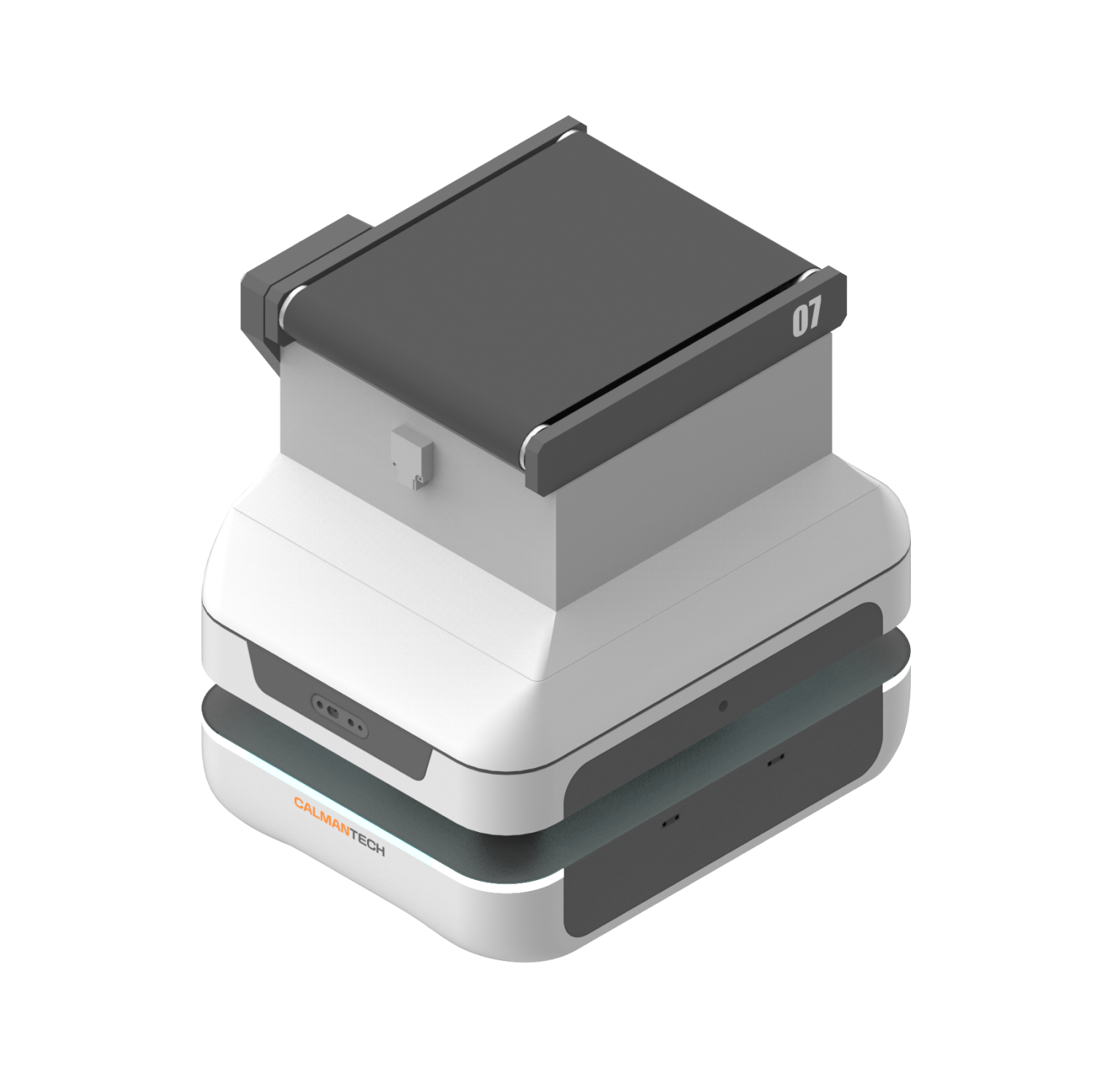

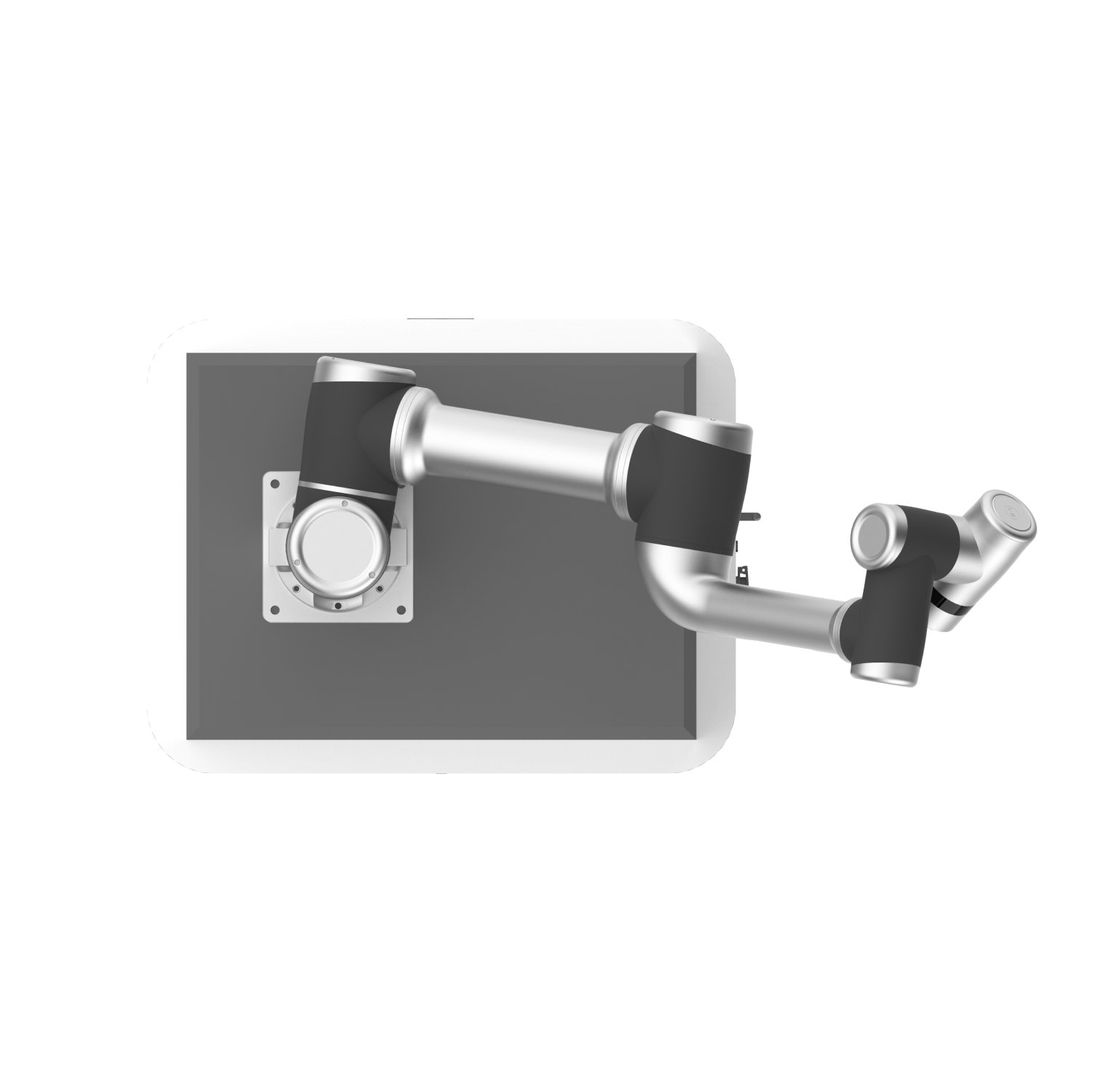

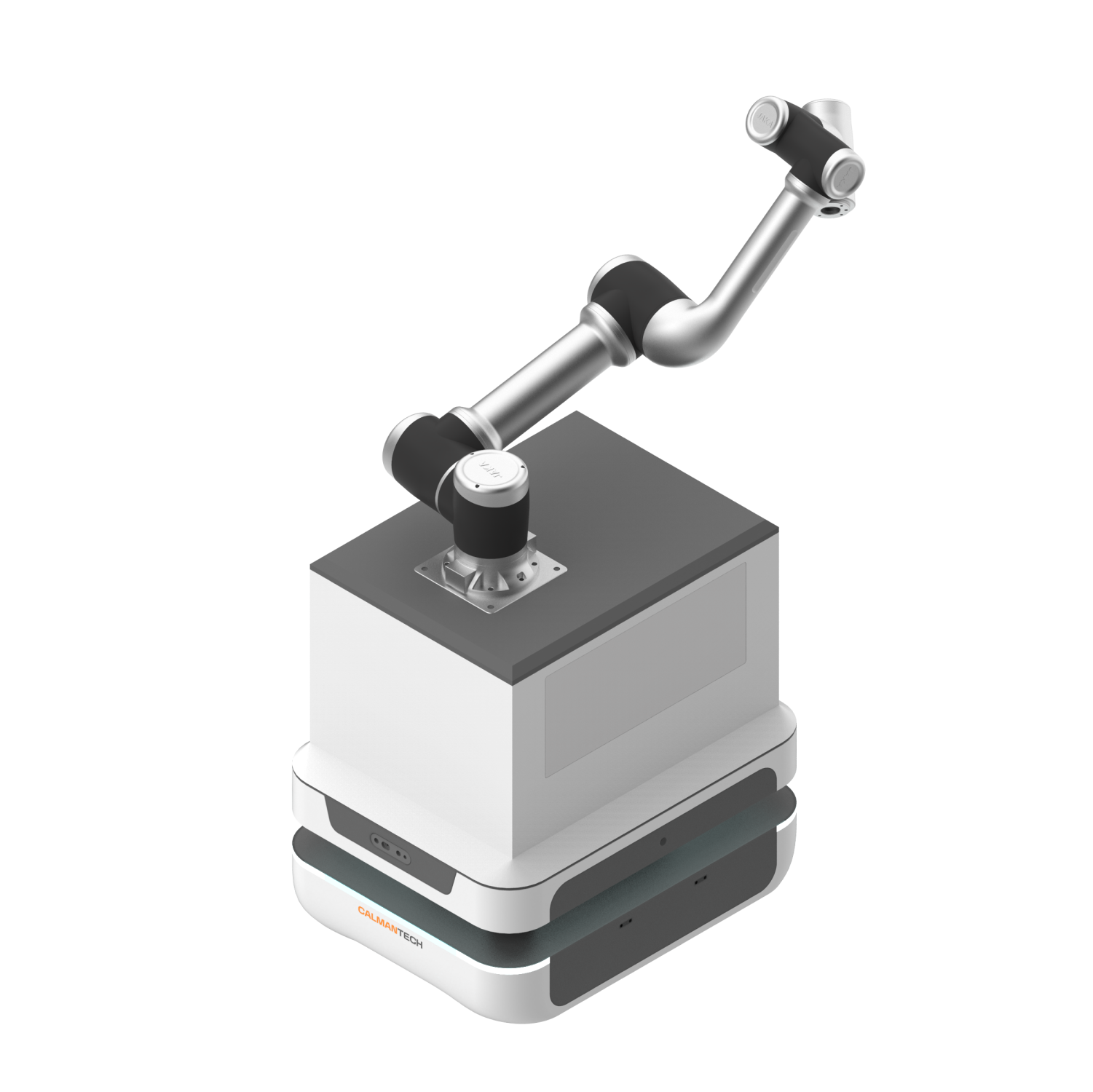

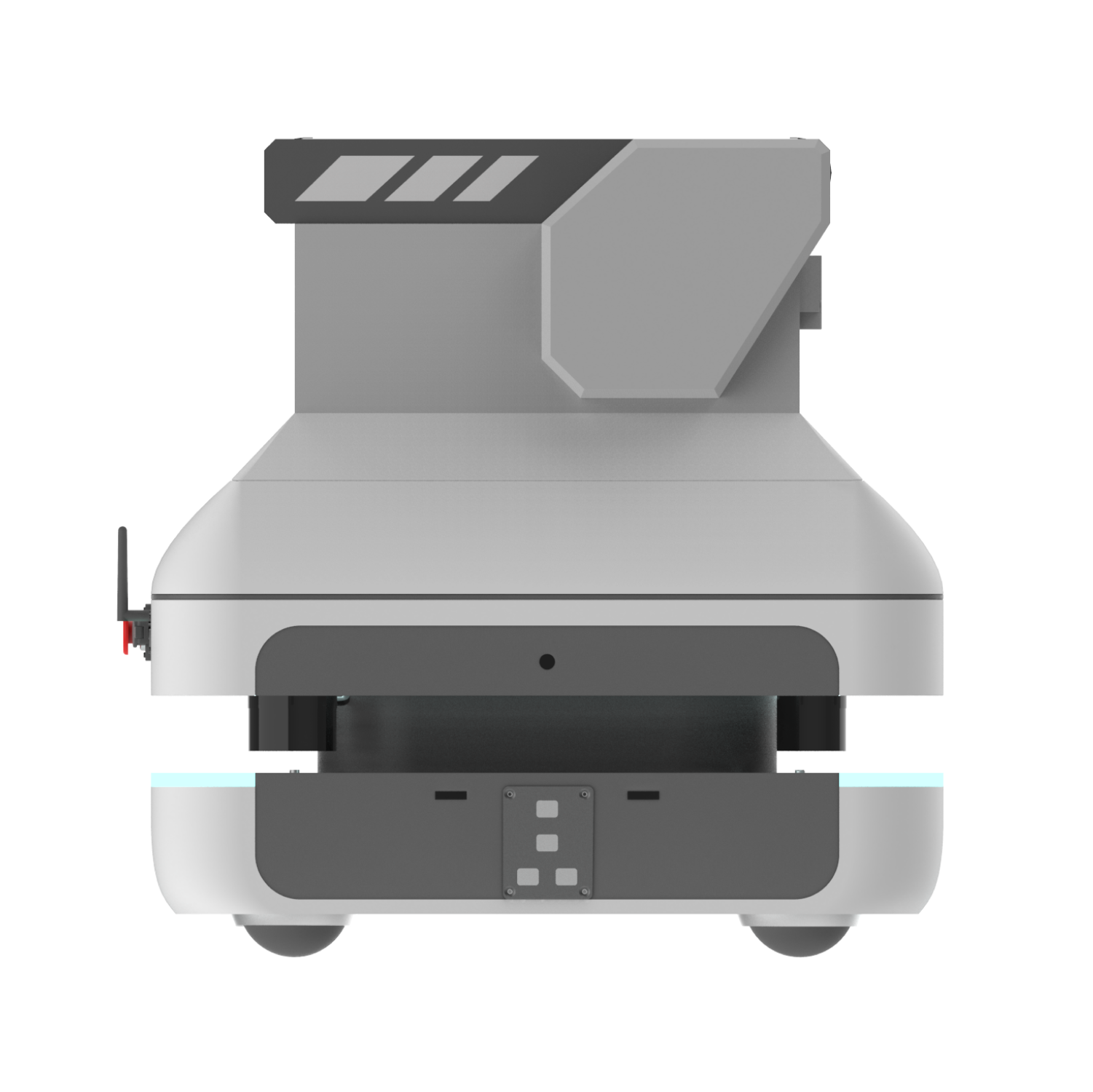

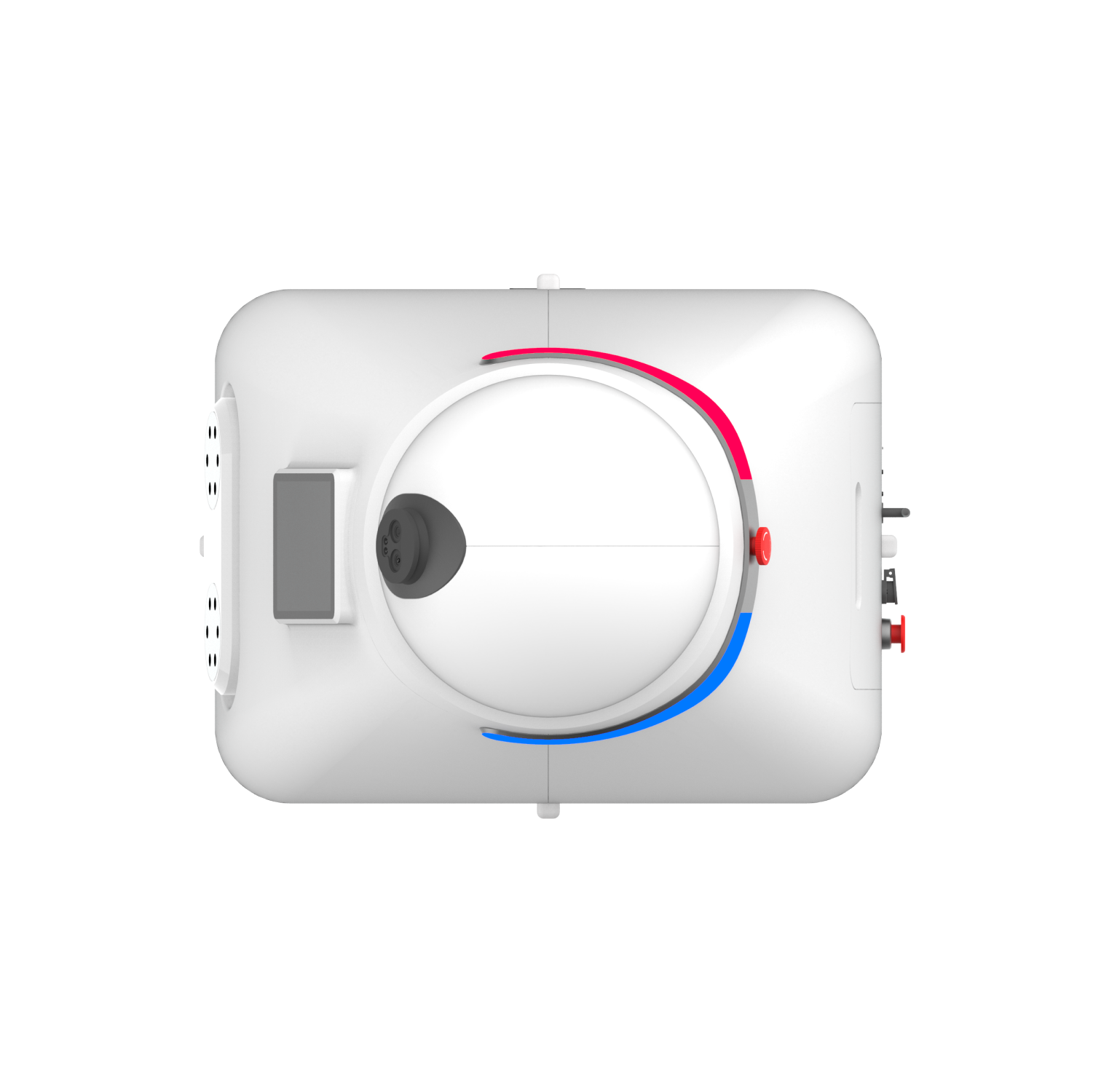

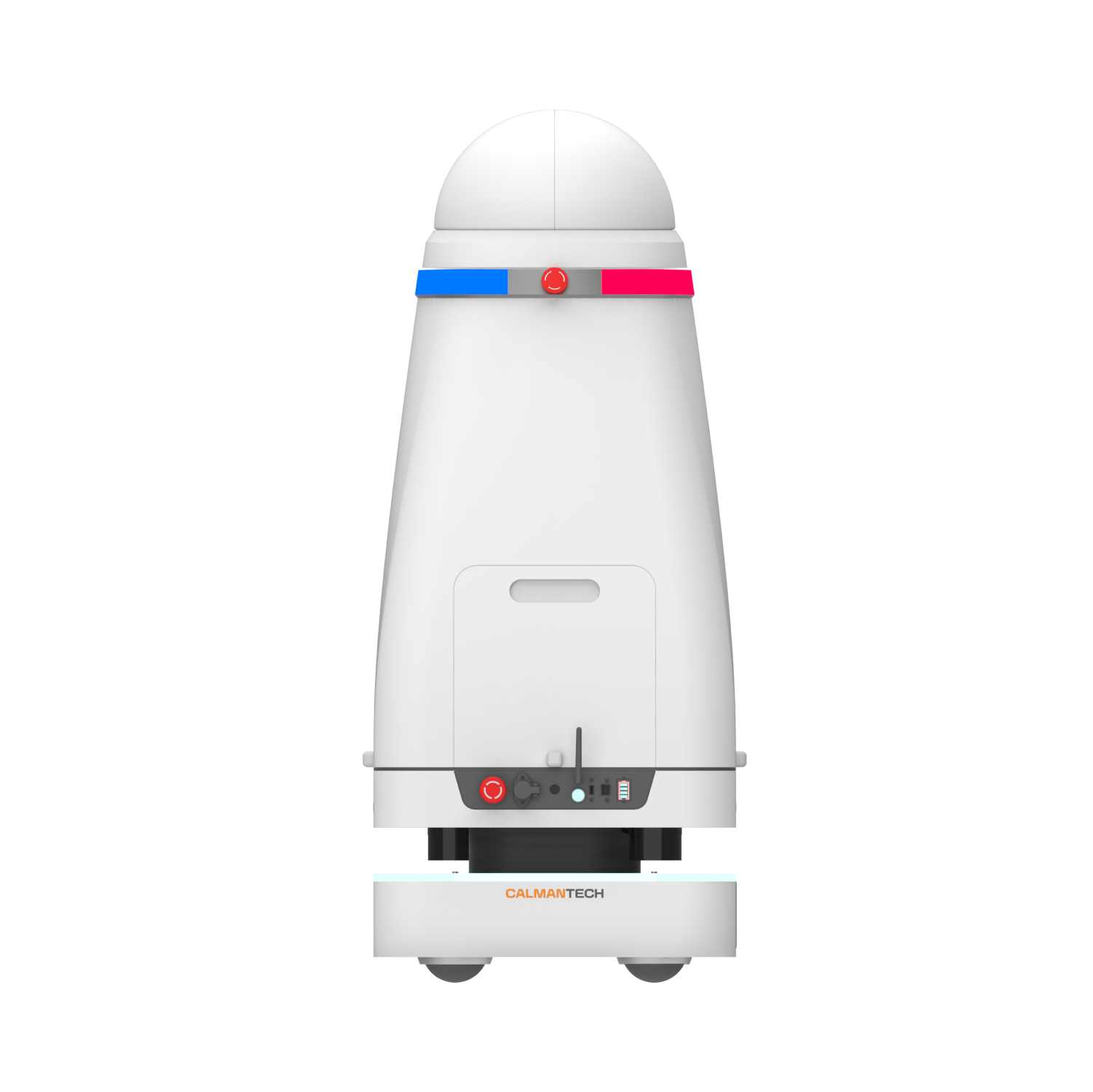

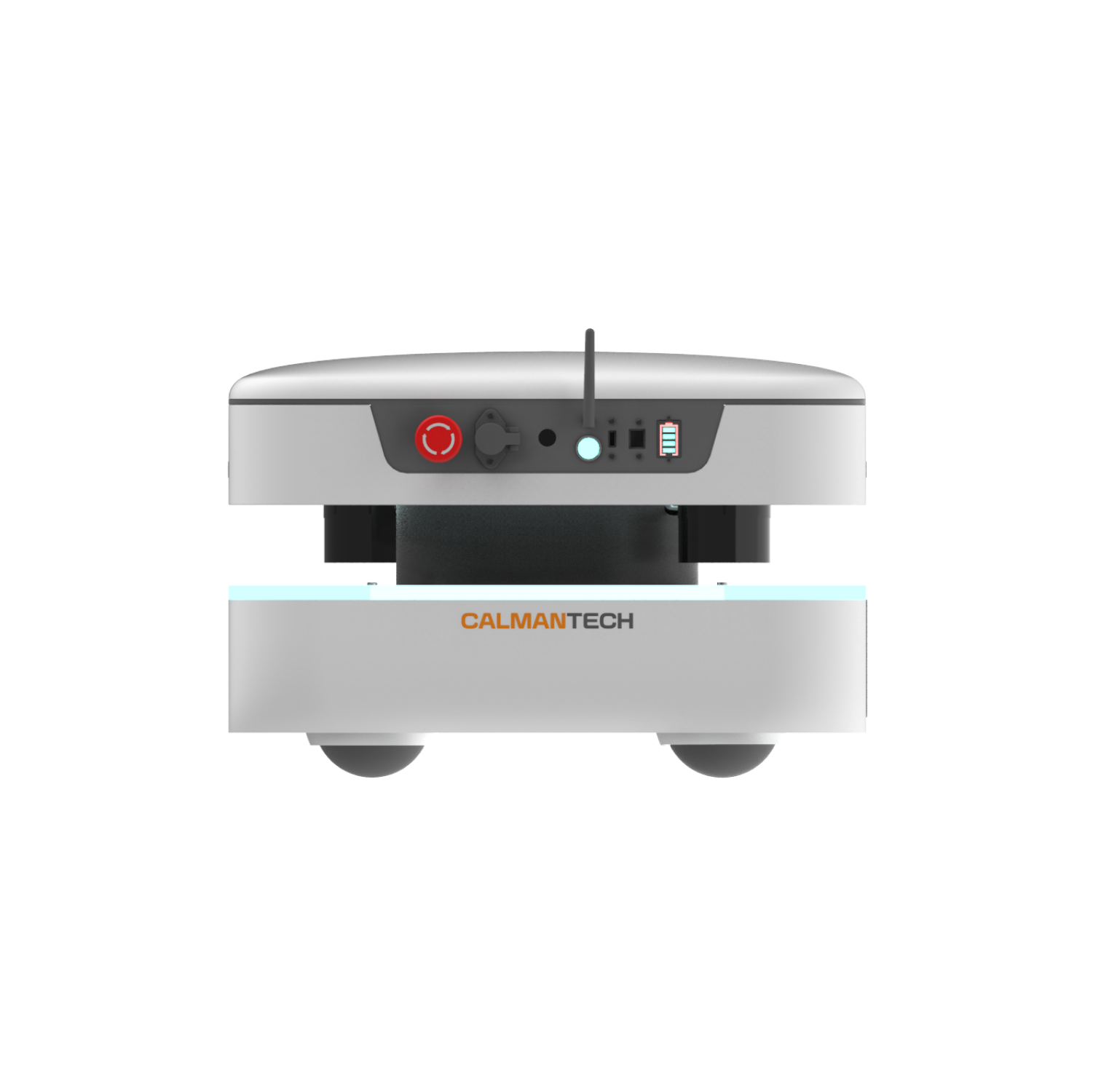

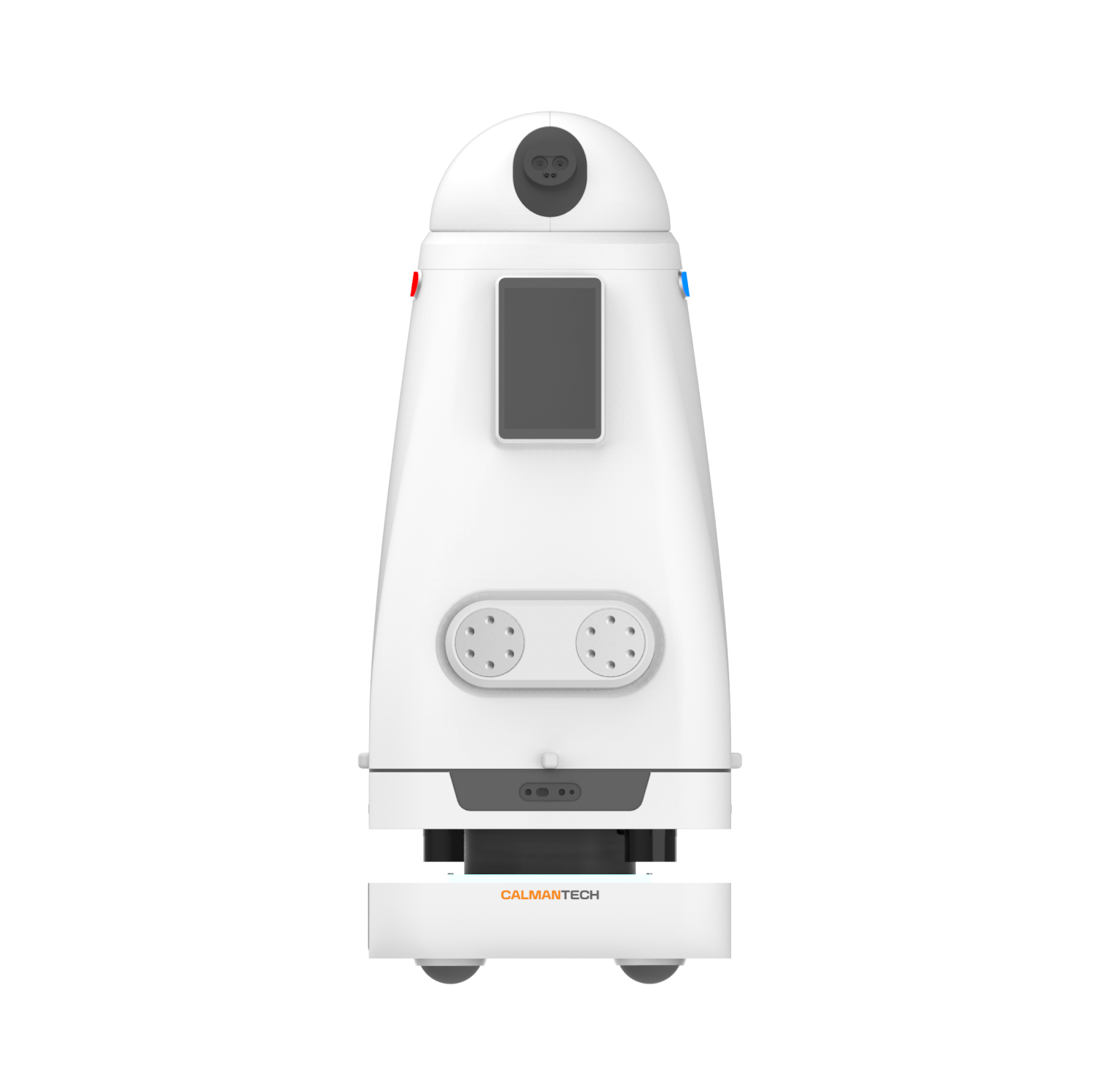

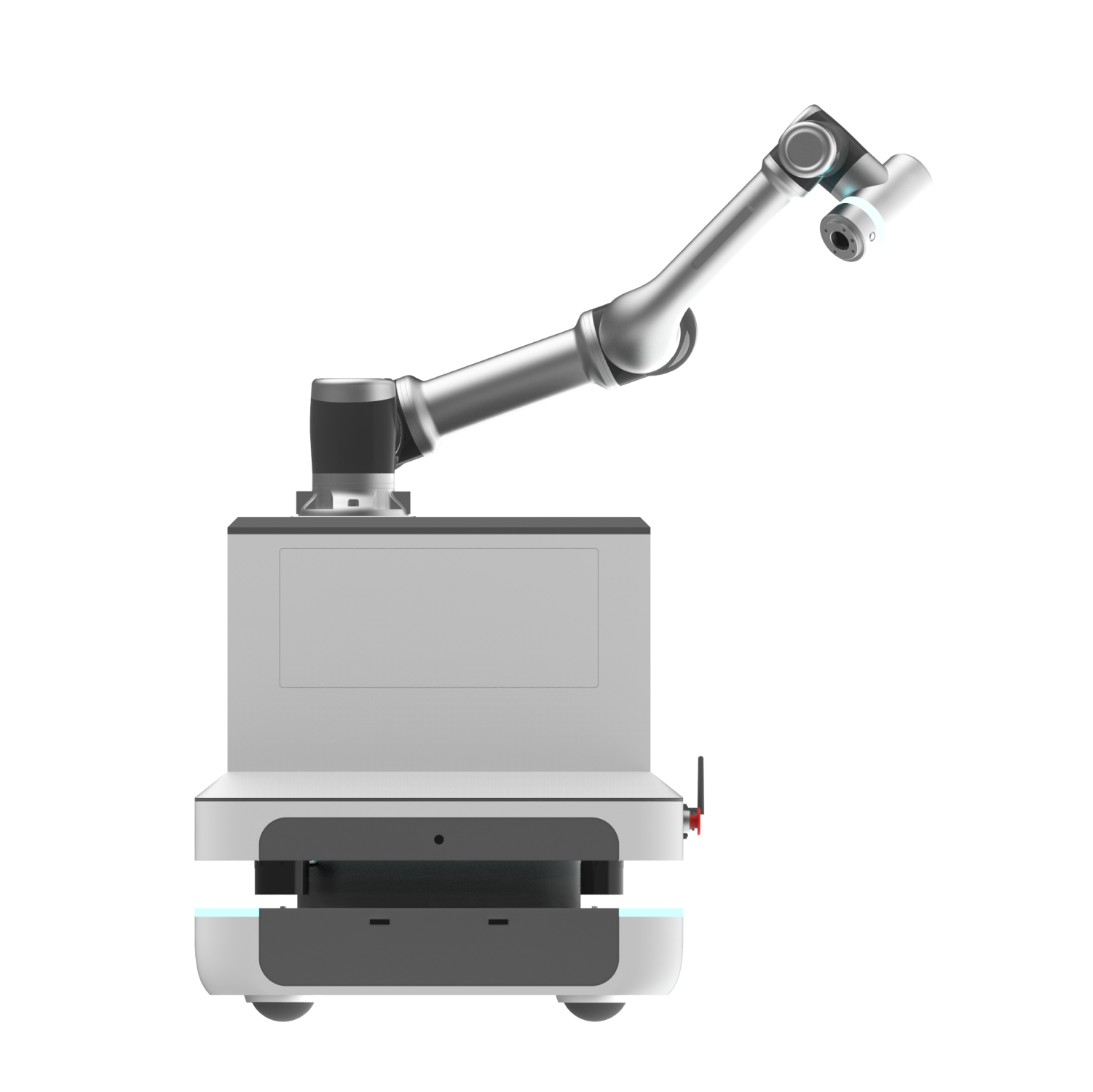

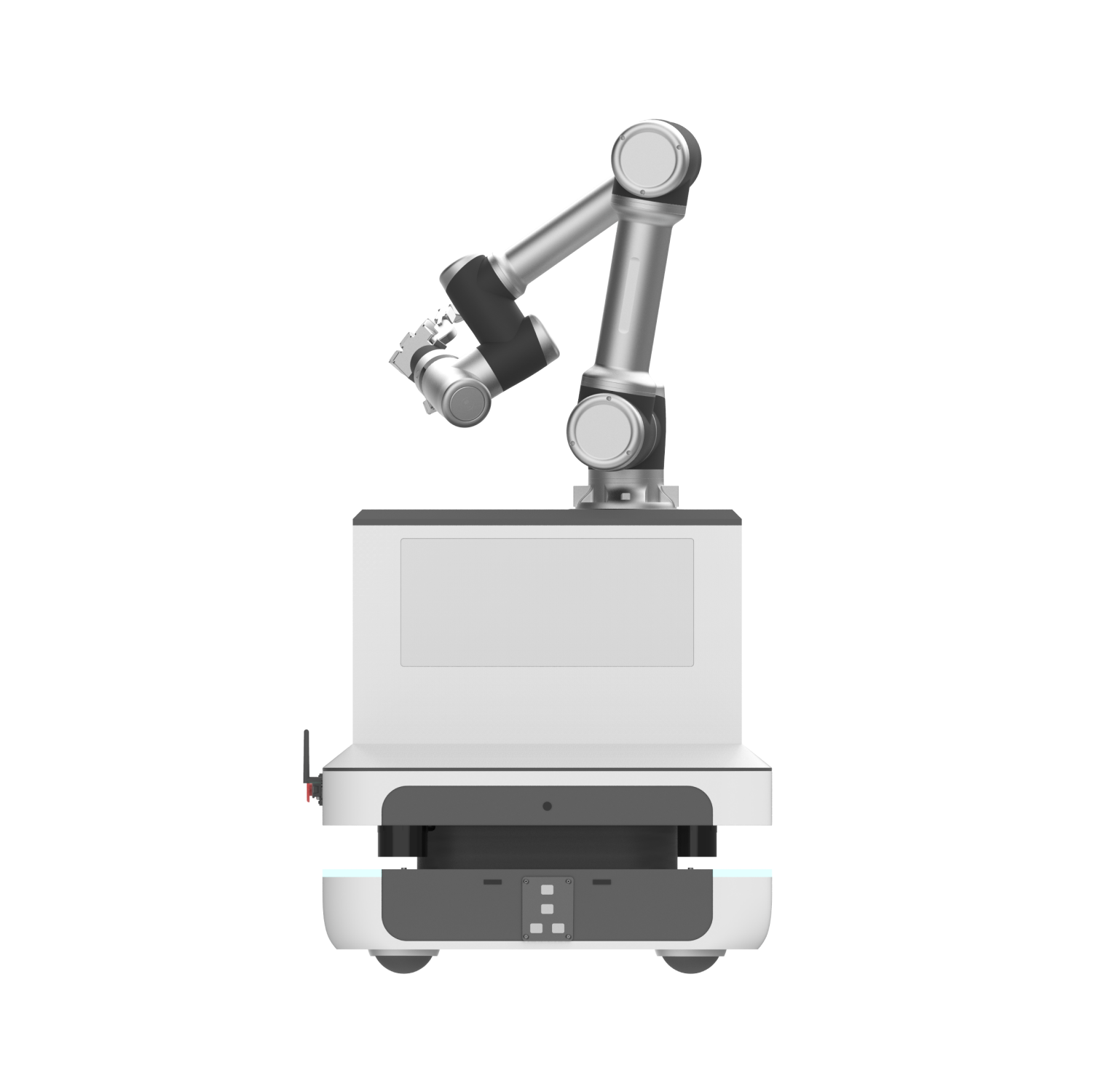

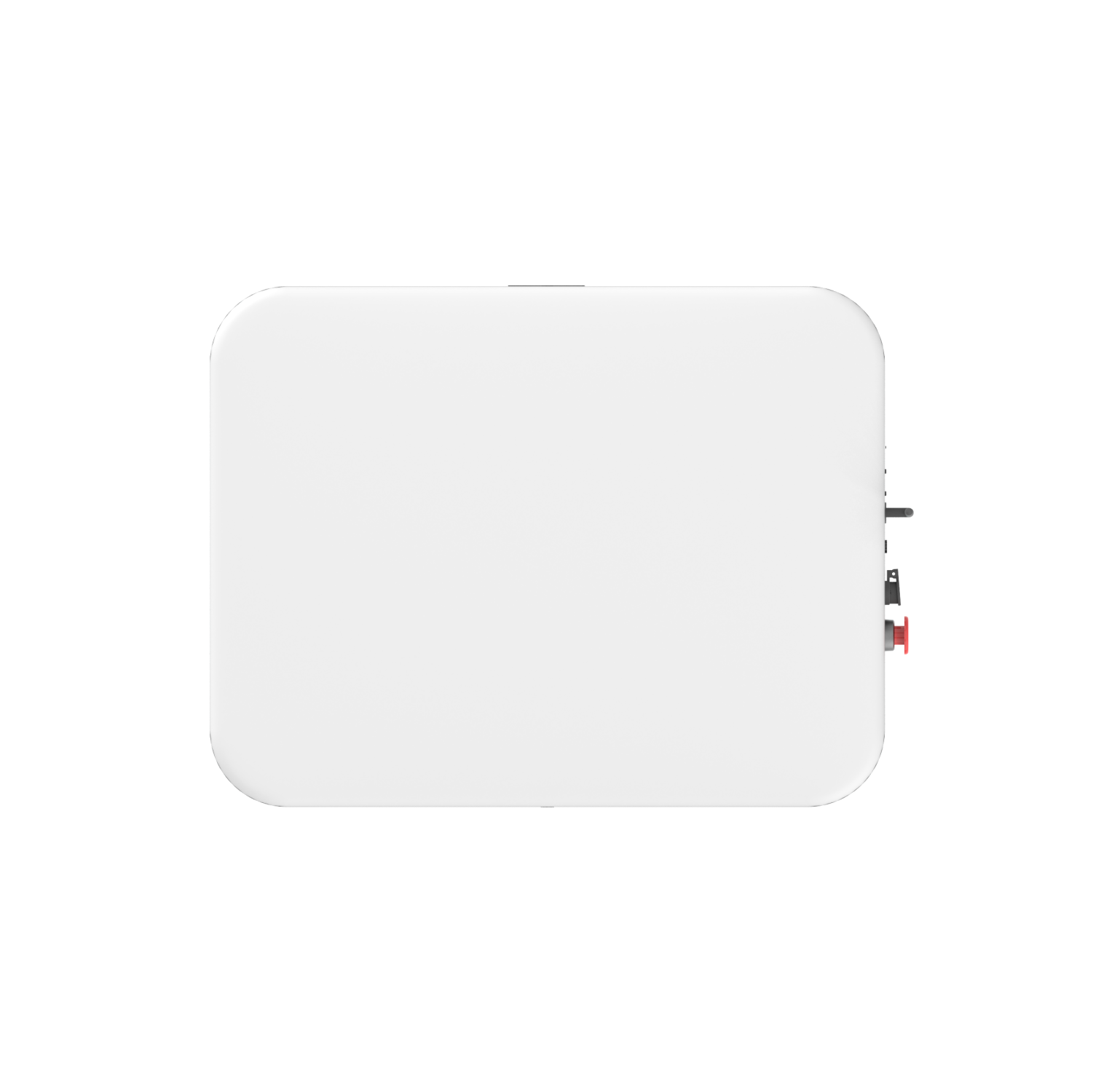

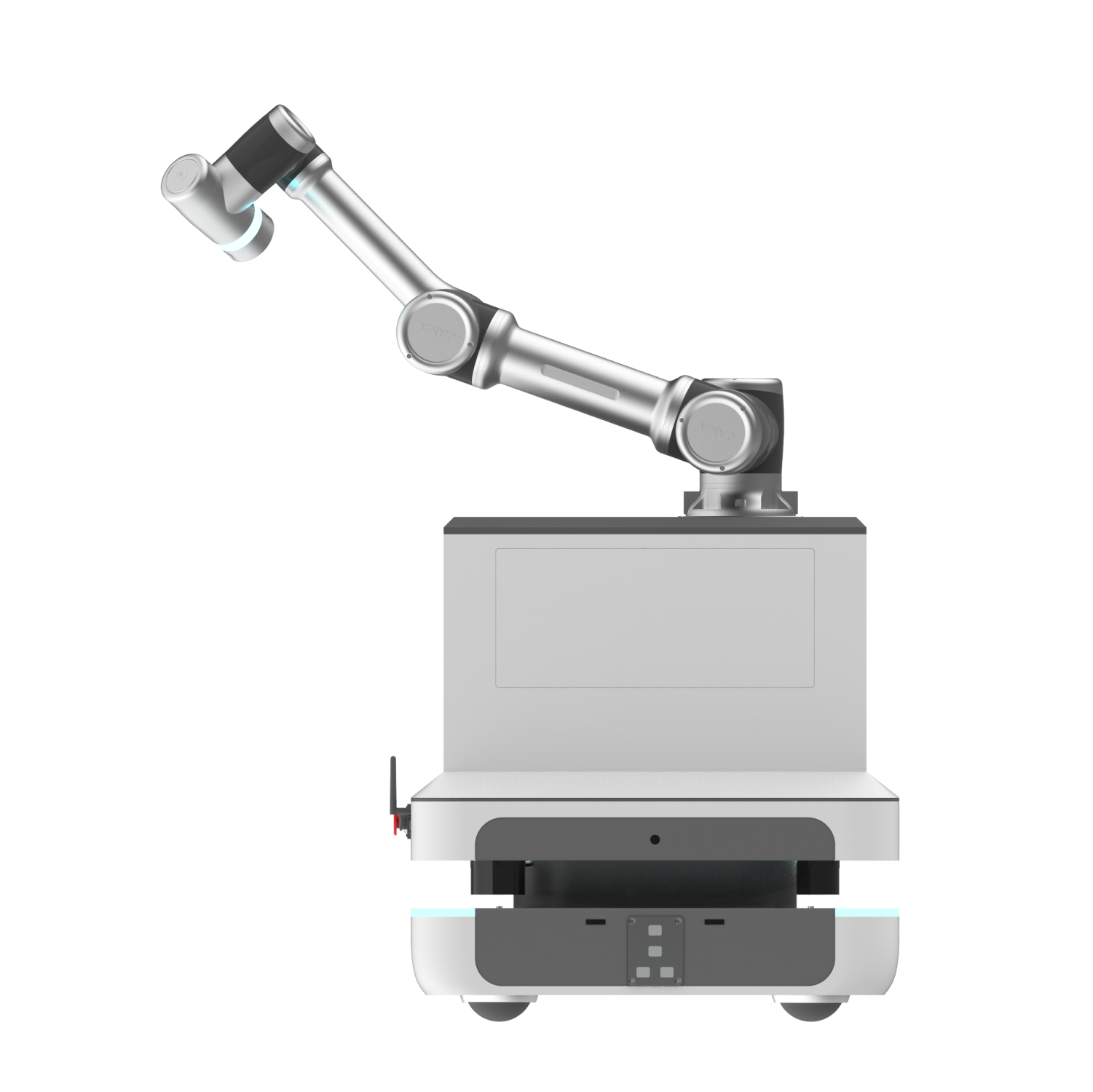

CMB Flow.AI top module is highly customizable

CMB Flow.AI top module is highly customizable

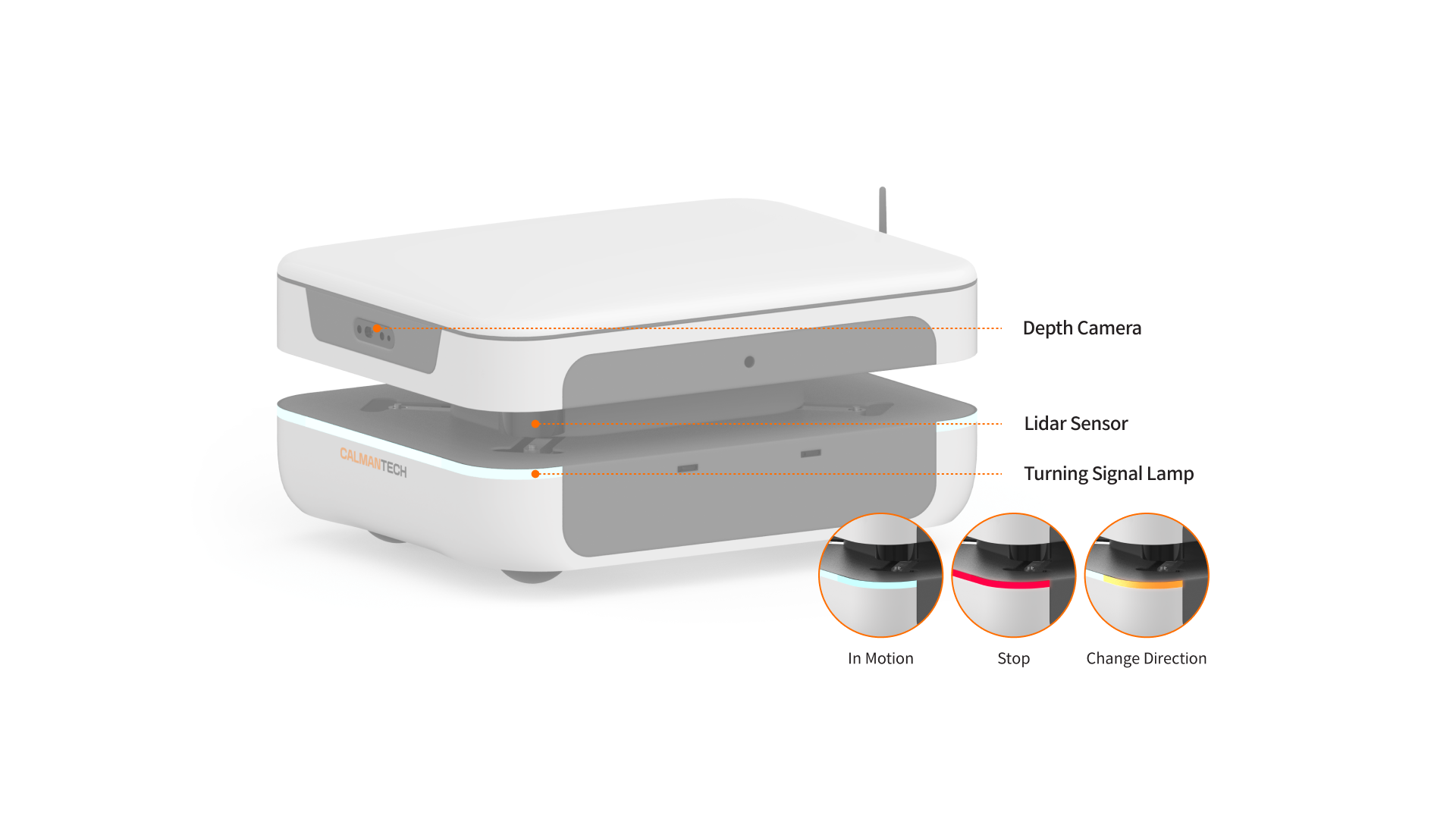

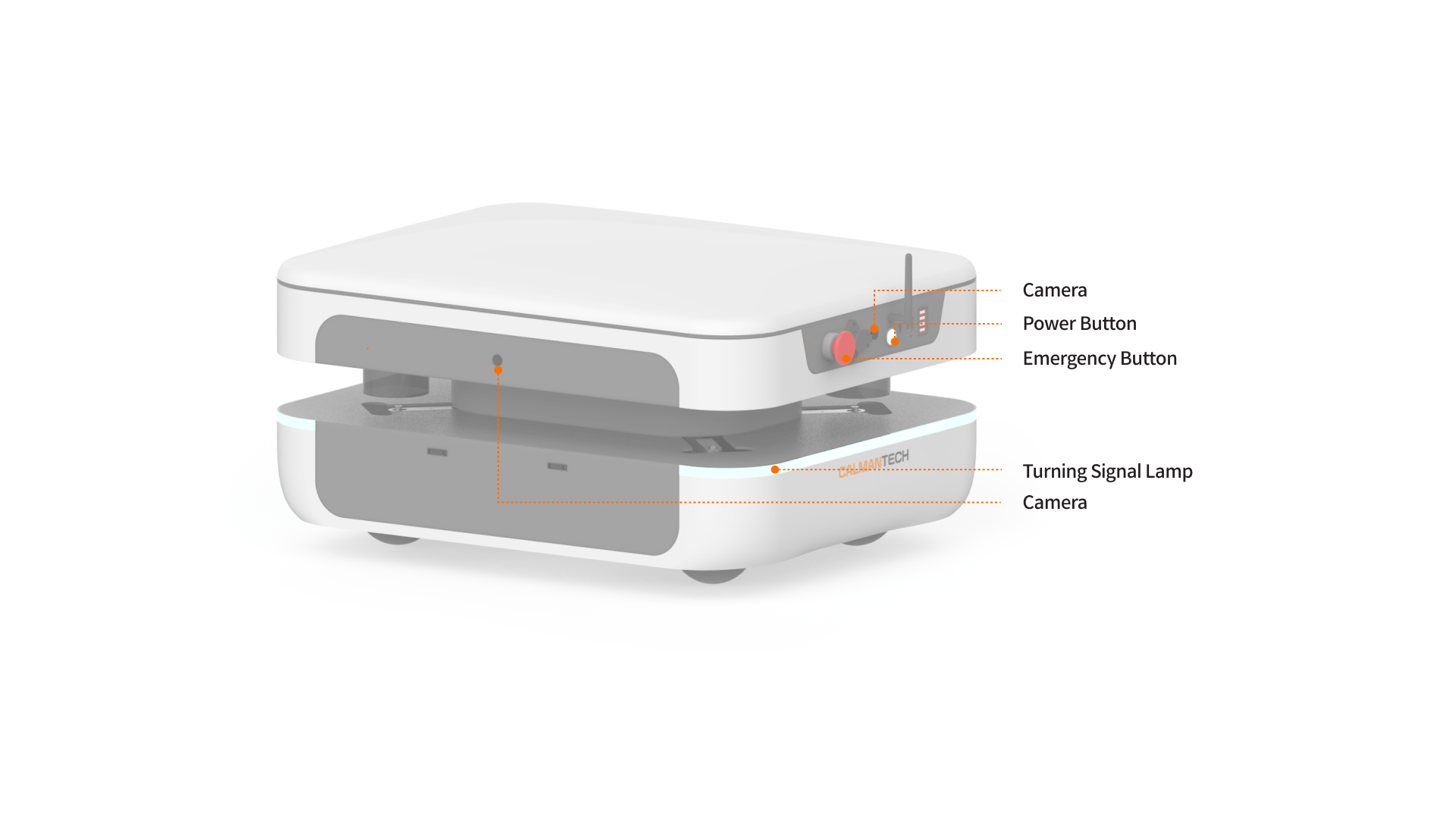

Parts & Sensors

Detailed Specifications
